DMiotech 2Pcs 1/4"-1/4" Bore Rigid Shaft Coupling Aluminum Alloy Blue
11 sold in last 24 hours
- APPLICATION: Widely used in blowers,3D printers, DIY robots, CNC machines, stepper motors, etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.

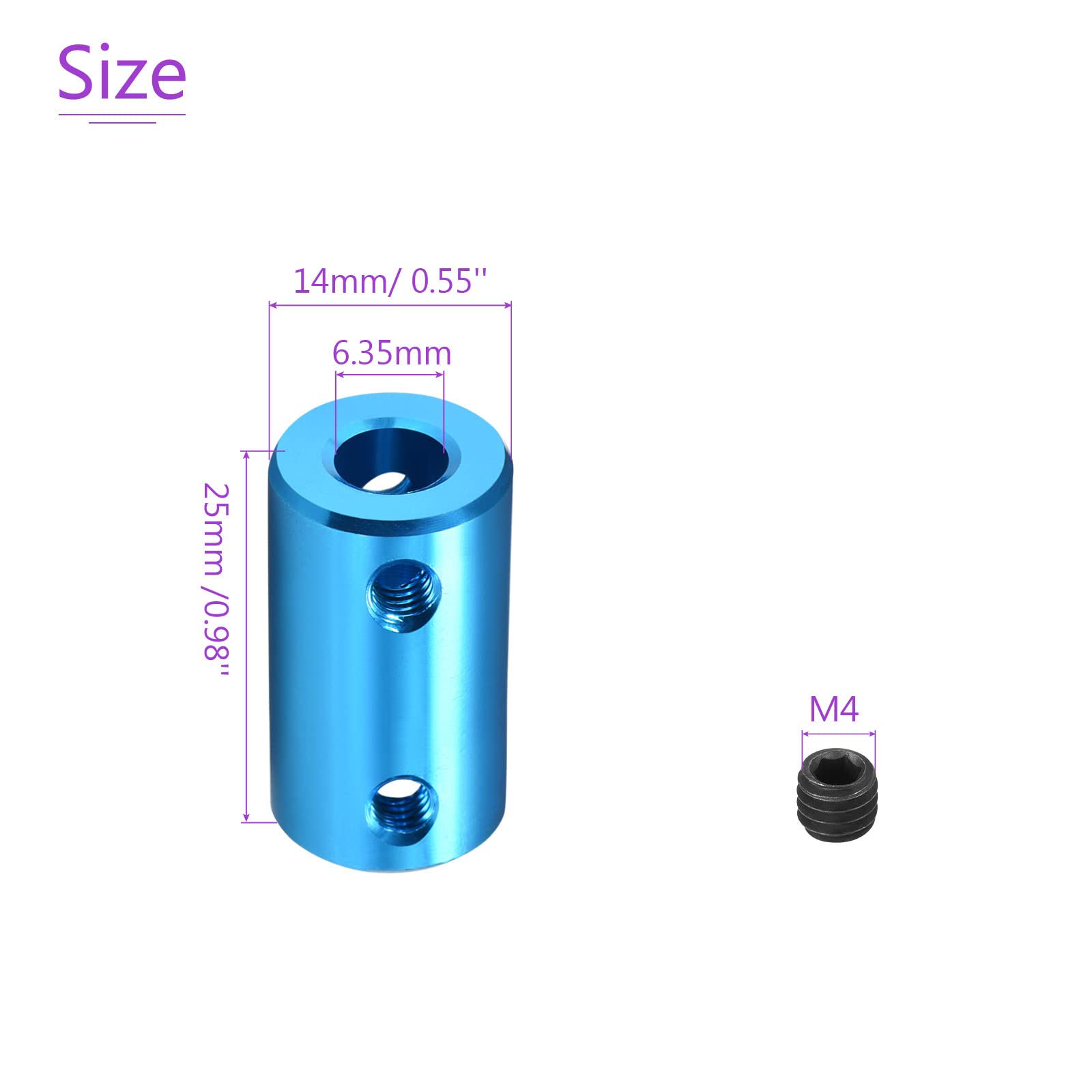

- SIZE: Connection Diameter: 1/4-1/4 inch, Total Length: 25mm /0.98 inch, Outside Diameter : 14mm/ 0.55 inch
- FEATURE: Single piece set screw clamp design makes it easy to set up the items on the shaft and control the holding capacity of the coupling.
- FUNCTION: Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
- NOTE: The rigid type basically does not allow eccentricity, and it must be fully adjusted during use.
Tags |
Estimated shipping
Select a product to estimate shipping.APPLICATION: Widely used in blowers,3D printers, DIY robots, CNC machines, stepper motors, etc. Similar to rigid clamp couplings, shaft couplers are used to hold bearings and sprockets tightly on the shaft, and are used in motor and gearbox assemblies.
ADVANTAGES:
1. Made from Steel material to reduce inertia, Maintenance-free, oil-proof and corrosion resistance
2. Rigid coupling, high torque with rigidity, low inertia, and excellent sensitivity
3. Top tight type rigid coupling with 2/4 screws to hold the shaft tightly; high torque with rigidity, low inertia and excellent sensitivity.
PACKAGE CONTENT:
8 pcs screws design
Thread Size: M4
Color: Blue
Material: Aluminum Alloy
Connection Diameter: 1/4-1/4 inch
Total Length: 25mm /0.98 inch
Outside Diameter : 14mm/ 0.55 inch
Through Angle: 180 Degree
2 Pcs x Rigid Shaft Coupler
8 Pcs x M4 Screws
NOTE:
Please allow 1-3mm differences due to manual measurement
| Main Specification | |
|---|---|
| Metalltyp | Aluminium or Alloy Steel |
| Materialmaterial | Aluminium or Alloy Steel |
| Tillverkare | DMiotech |
| Unit Count | 2 greve |
| Exteriör Finish | Aluminum Alloy |
| Utanför Diameter | 14 millimeters |
| Brand varumärke | DMiotech |
| Antal objekt | 2 2 2 |
| Fastener Type | Coupling |
| Punkt Diameter | 0,25 inches |
| Trådstorlek | M 4 |
| Färg | Blå |
| Trådtyp | ISO Metric |
| Product information | |
| Antal Packs | 2 2 2 |
| Ställ namn | 2 Pack |
| Technical Details | |
| Materialtyp | Alloy Steel or Aluminium |
| Delnummer | mif220927me2095 |
| Modellmodell | mif220927me2095 |
| Inuti trådstorlek | M4 |
| Thread Style | Straight |
| Trådklass | Standard |
| Kompatibel Groove Diameter | 0,25 inches |
| Style | |
| Finish Typer | Oavslutad |
| Others | |
| Produkttyp | Set Screw |
| Item Highlight | L25XD14 Coupling Joint Connector w Screws Motor Shaft Connector for 3D Printer |
| Grade Rating | Industriell |
| Storlek Namn | 1/4" |
| Skruv huvudstil | Flat |
