Siglent Technologies SDS1104X-E 100Mhz Digital Oscilloscope 4 Channels Standard Decoder, Grey
3 sold in last 24 hours
- Package Weight :4.0 Kg
- Standard Decoder: Iic, Spi, Uart/Rs232, Can, Lin
- 16 Digital Channels (Mso) (Four Channel Series Only, Option)
- Usb Awg Module(Four Channel Series Only, Option)
Tags |
Estimated shipping
Select a product to estimate shipping.The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400, 000 frames/sec (sequence mode). The SDS1000X -E also employs a 256 -level intensity grading display function and a colour temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels(Option), an externals powered 25 MHz AWG module(Option), a USB WIFI adapter(Option), and an embedded application that allows remote control via web browser.
SDS1000X-E Series Super Phosphor Oscilloscope
SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels.
Key Features
Math co-processor speeds front panel operation
Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
Low background noise and 500 μV / div to 10 V / div voltage scales
Serial decoding is free and includes IIC, SPI, UART, CAN, and LIN
On-screen Bode plot and web-browser control (standard on 4 channel only)
WiFi control (optional on 4 channel only)
True measurement and math can use all 14 Mpts of memory
Large 7-inch TFT-LCD display with 800 * 480 resolution
Key Performance Specifications
100 MHz-200 MHz
2+EXT/4 CH
14 Mpts Record length
1 GSa/s sample rate
1Mpts FFT
16 Logic/MSO Optional on 4 Channel Only
Gate and Zoom Measurement
Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.
Hardware-Based High Speed Pass/ Fail Function
The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.
The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.Four-channel series support Peaks, Markers, a variety of numbers.
History Waveforms (History) Mode and Segmented Acquisition (Sequence)
Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.

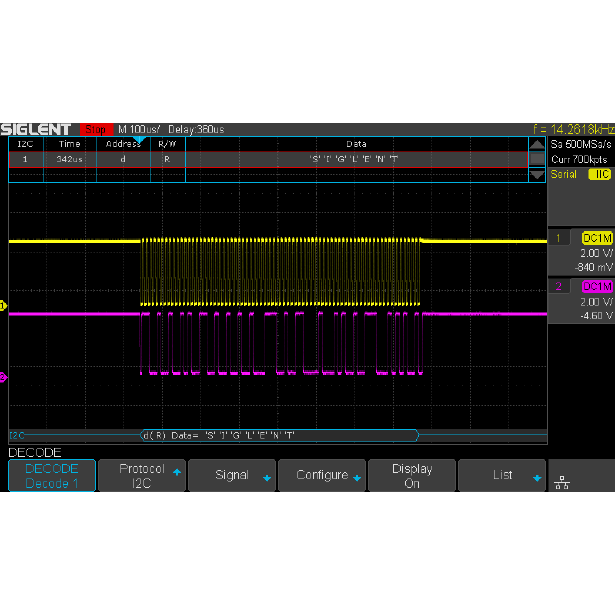

Serial Bus Decoding Function (Standard)
SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.
True Measurement to 14 M Points
SDS1004X-E can measure all sampled data points up to 14 Mpts. This ensures the accuracy of measurements while the math co-processor decreases measurement time and increases ease-of-use.
Bode Plot (Four Channel Series Only)
SDS1004X-E can control the USB AWG module or control an independent SIGLENT SDG instrument, scan a devices amplitude and phase frequency response, and display the data as a Bode Plot. There is also a Vari-level Mode for accurately measuring Power Supply Control Loop Response (PSRR). It can also show the result lists, and export the data to a USB disk.
Web Control (Four Channel Series Only)
With the new embedded web server, users can control the SDS1004X-E USB WIFI Adapter series only) from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities. The web page has PC and mobile styles that include an embedded virtual control panel
Product details
| Main Specification | |
|---|---|
| Inkluderade komponenter | usb kabel or calibration certificate or Quick Start or 4 passive probes |
| Tillverkare | Siglent Technologies |
| Unit Count | 1 Räkna |
| Specifikation Met | FCC |
| Brand varumärke | Siglent |
| UPC | 764560085678 |
| Antal objekt | 1 1 |
| Power Source | Us |
| Färg | Grå |
| Stil | Decoder |
| Global Trade Identification Number | 00764560085678 |
| Punktvikt | 6.6 pounds |
| Technical Details | |
| Delnummer | SDS1104X-E |
| Modellmodell | SDS1104X-E |
| Style | |
| Stilnamn | Decoder |
| Measurements | |
| Objekt Dimensioner | 12.2 x 5.12 x 5.91 inches |
| Others | |
| Produkttyp | Oscilloscopes |
| Minsta operativa spänning | 500 Microvolts |
