Genmitsu 40pcs End Mills CNC Router Bits, 1/8" Shank
5 sold in last 24 hours
- High Quality: The Genmitsu end mills are made of ultra-fine 0.2μm tungsten carbide steel alloy that can keep continuous machining 800 minutes. Moreover, its Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- 2-Flute Spiral Flat Nose & Ball Nose End Mills -- Shank Diameter: 3.175mm, Cutting Diameter: 3.175mm, Cutting Length: 17mm, Overall Length: 38mm.
- Two End Mill Sets -- Shank Diameter: 3.175mm, Cutting Diameter: 0.8 - 3.0mm (0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.5/3.0mm), Cutting Length: 17mm, Overall Length: 38mm, with Nano blue and Titanium coating.
- Applicable Materials: Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing.
- Wide Compatibility: The MC40A end mills are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines. Just make sure you select the correct-sized collet for your device
Tags |
Estimated shipping
Select a product to estimate shipping.Download location of the database
Please refer to the Product Guide and Documents on the product page.
We have included the download links for the various software, including Fusion 360, Carveco and G-Wizard, in a PDF document (can only be called a USER GUIDE due to policy).
To cover all the other options, we have included two tables with all the parameters for bits, speeds and feeds.
The Genmitsu CNC Router Bits Tool Database is available now!
What's it for?
The Tool Database is used to make tool management and selection very quick and easy, reducing the possibility of programming jobs with incorrect depths, speeds and feeds.
The Tool Database is accessed from the Select button each time a new toolpath is created and allows pre-defined tools and settings (speeds, feeds, etc.) to be selected from a list.
Overall, a tool database can help you save time, money and improve safety in your workplace.
Note: The database can only be used as a guide, please start with conservative settings, low speeds and depths of cut and see what speeds and feeds work best for your specific application.
What project are you undertaking?
What are you cutting? Is it hard or soft wood? Is it stainless steel, fiberglass, MDF, acrylic, or aluminum?
In case you’re new to CNC routing and you want a multi-purpose bit, go for two-flute spiral bits since they cut a wide range of materials, including plastics, aluminum, foam, and wood.

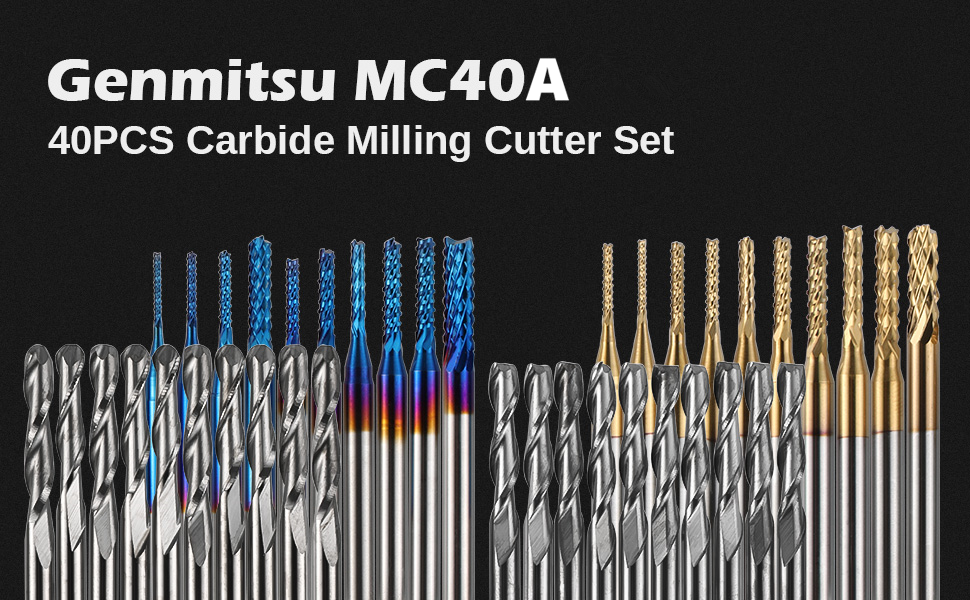

Genmitsu MC40A
40pcs End Mills CNC Router Bits
10 x Spiral Flat Nose End Mills, 2-Flute
10 x Spiral Ball Nose End Mills, 2-Flute
10 x Nano Blue Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
10 x Titanium Coating End Mills (different cutting diameter: 0.8mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm)
Material: Tungsten Carbide Steel Alloy
Surface : Nano Blue Coating/Titanium Coating
Shank Diameter: 1/8'' (3.175mm)
Cutting Diameter: 0.8-3mm, 3.175mm
Cutting Length: 17mm
Overall Length: 38mm
Cost-Effective Set
The MC40A end mill set includes 4 type bits: spiral flat nose bits, ball nose bits, Nano Blue Coat end mills and Titanium Coat end mils. It's a very cost-effective set to meet your all needs in engraving work.
Wide Application
Widely used in various materials including plastics, aluminum, circuit board, wood, as well as other precision parts processing. They are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines.
High Quality
Its Nano Blue Coating /Titanium Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
Product details
| Main Specification | |
|---|---|
| Cut Type | Spiral Flat Nose or Ball Nose |
| Tillverkare | Genmitsu |
| Unit Count | 1 Räkna |
| Cutting Diameter | 3.18 millimeters |
| Brand varumärke | Genmitsu |
| Antal objekt | 1 1 |
| Cutting Length | 17 millimeters |
| Shape | Runda |
| Storlek | MC40A (40PCS) |
| Finish Type | Titanium |
| Global Trade Identification Number | 04897093844385 |
| Punktvikt | 0,2 kg |
| Technical Details | |
| Delnummer | / |
| Modellmodell | MBS-001 |
| Number of Flutes | 2 |
| End Cut Type | Ball End |
| Tolerance Held | Precision |
| Number of Cutting Edges | 2 |
| Style | |
| Finish Typer | Titanium |
| Others | |
| Item Highlight | CNC Cutter Milling Carving Bit Set Including 2-Flute Flat Nose & Ball Nose or Nano Blue Coat & Titanium Coat or MC40A |
| Produkttyp | Ball Nose |
| Dimensioner L x W | 1.5"L x 3.18"W |
| Storlek Namn | MC40A (40PCS) |
