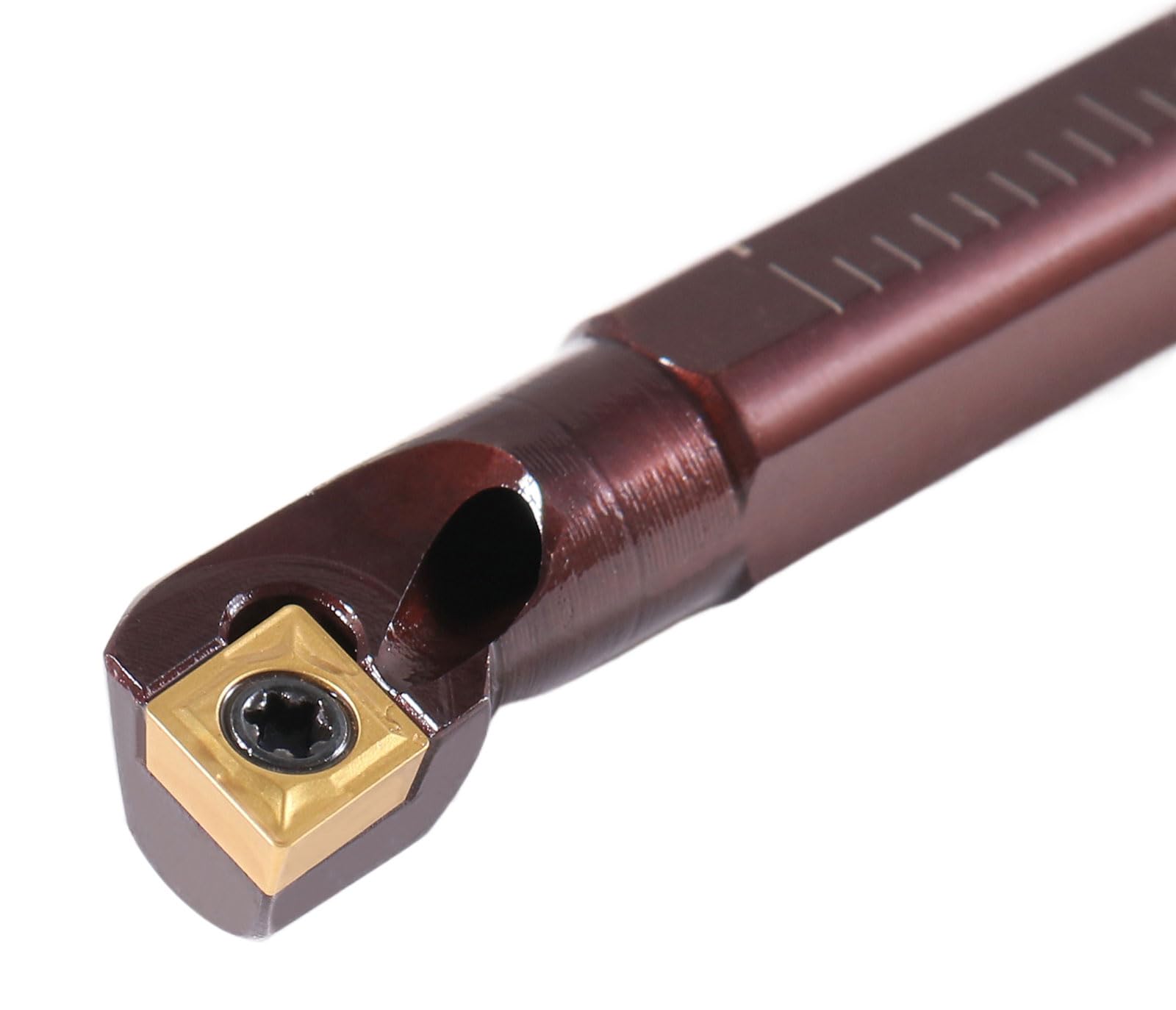

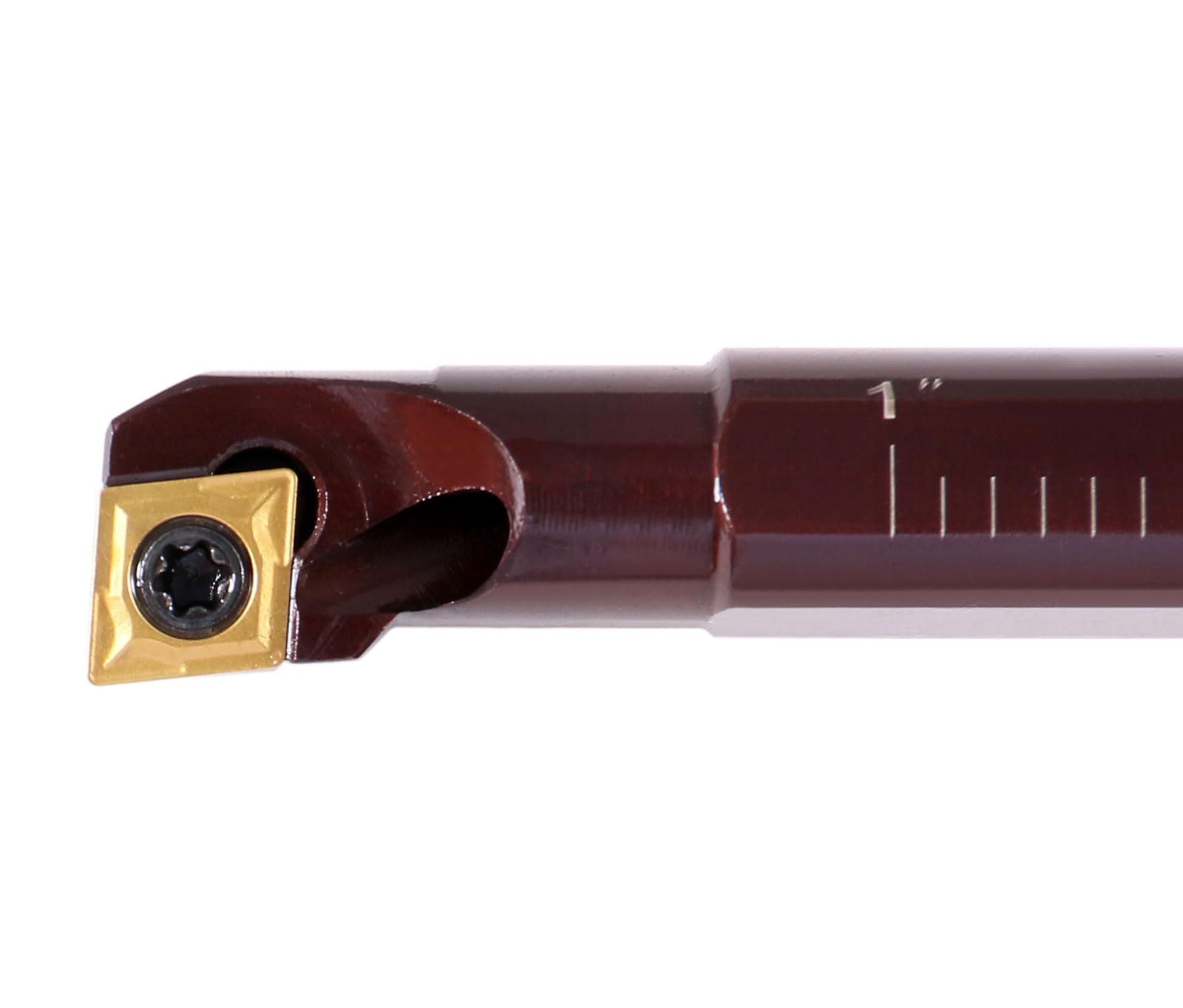

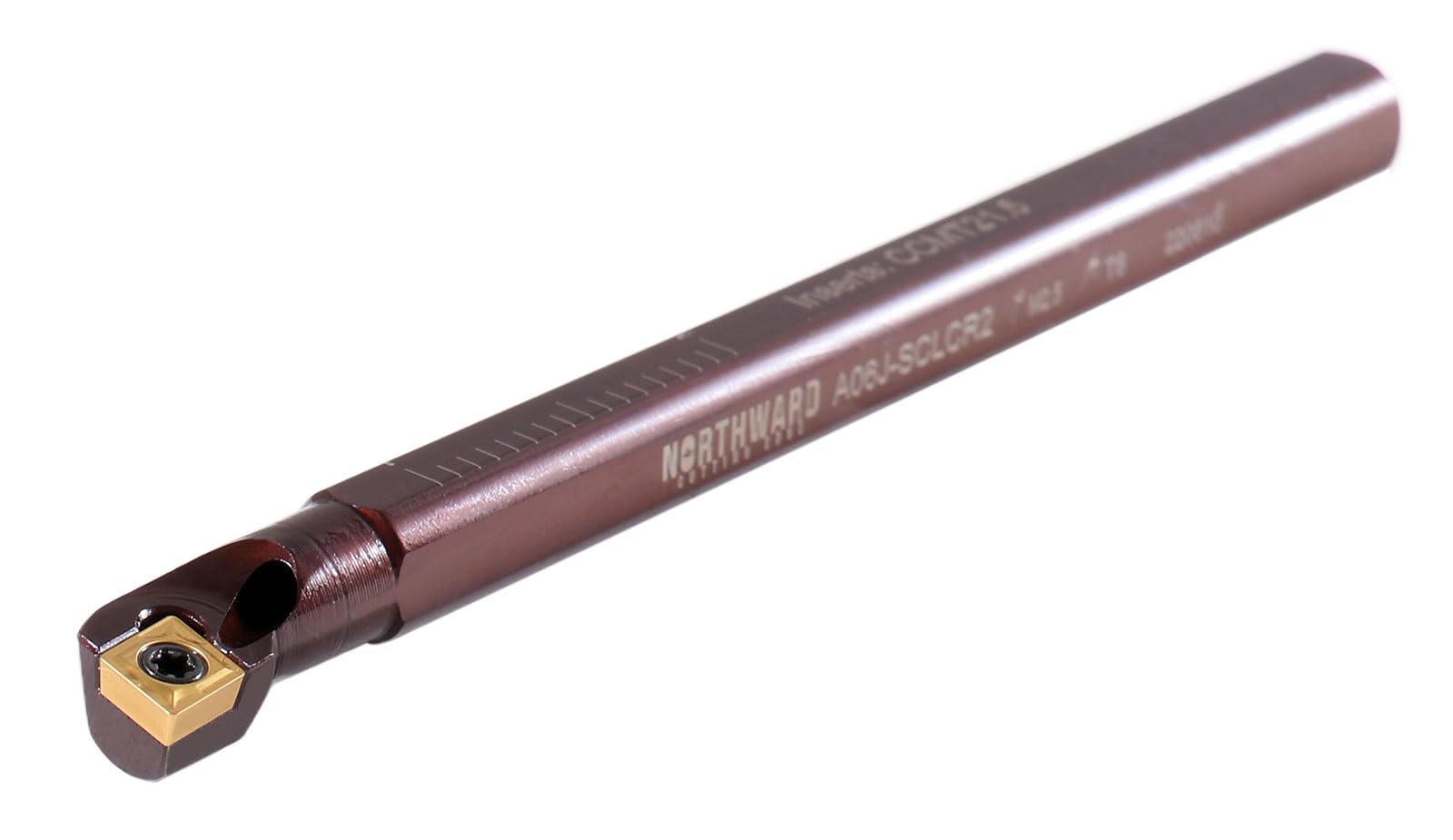

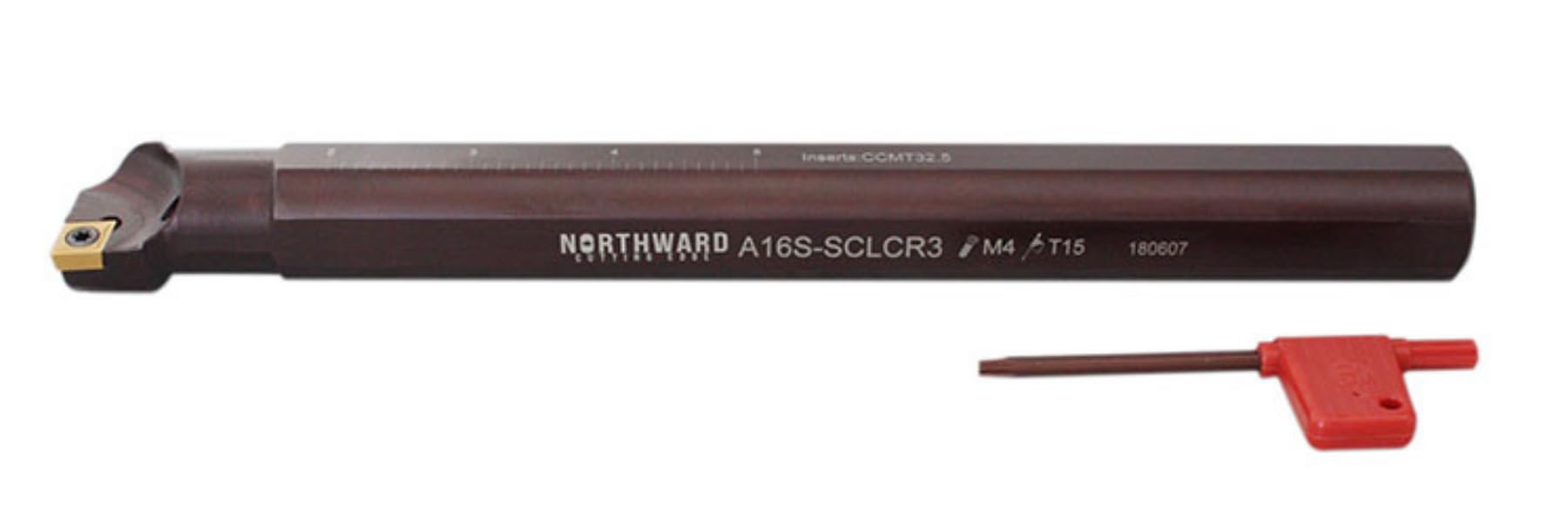

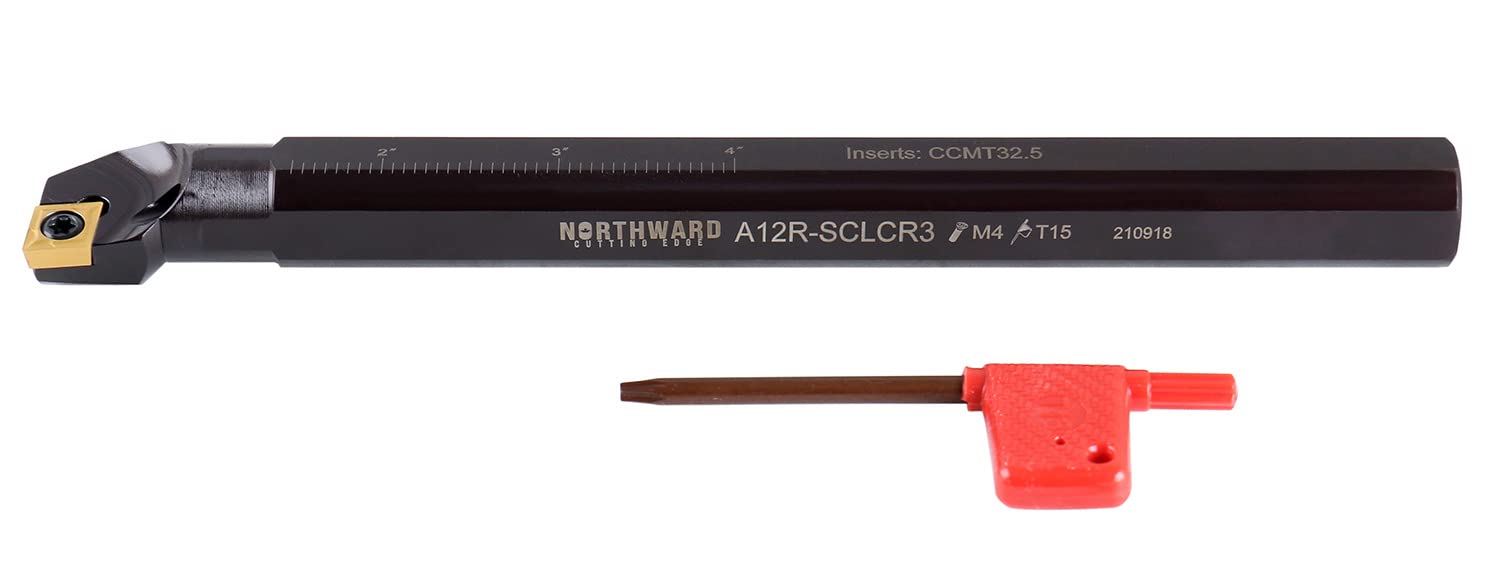

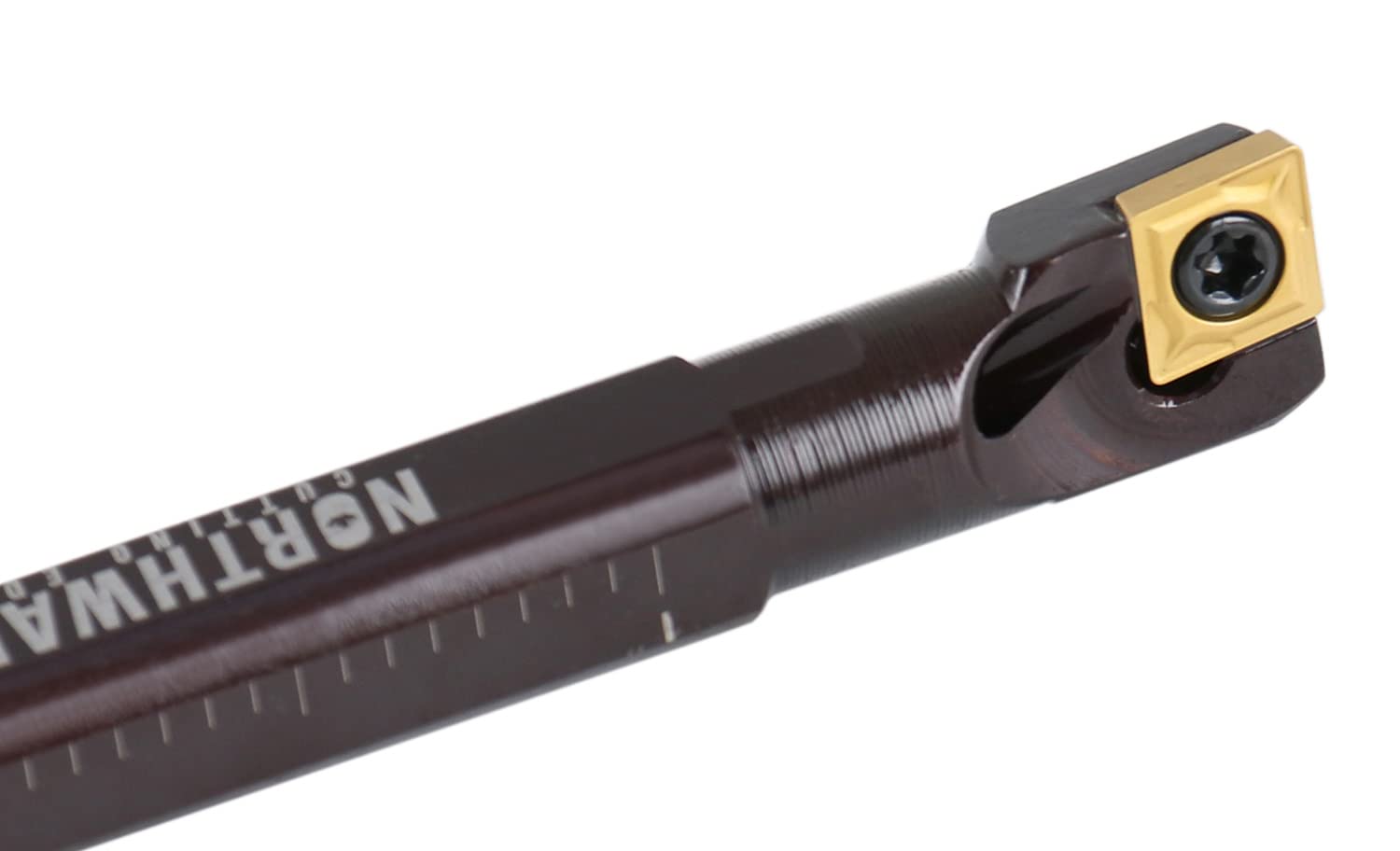

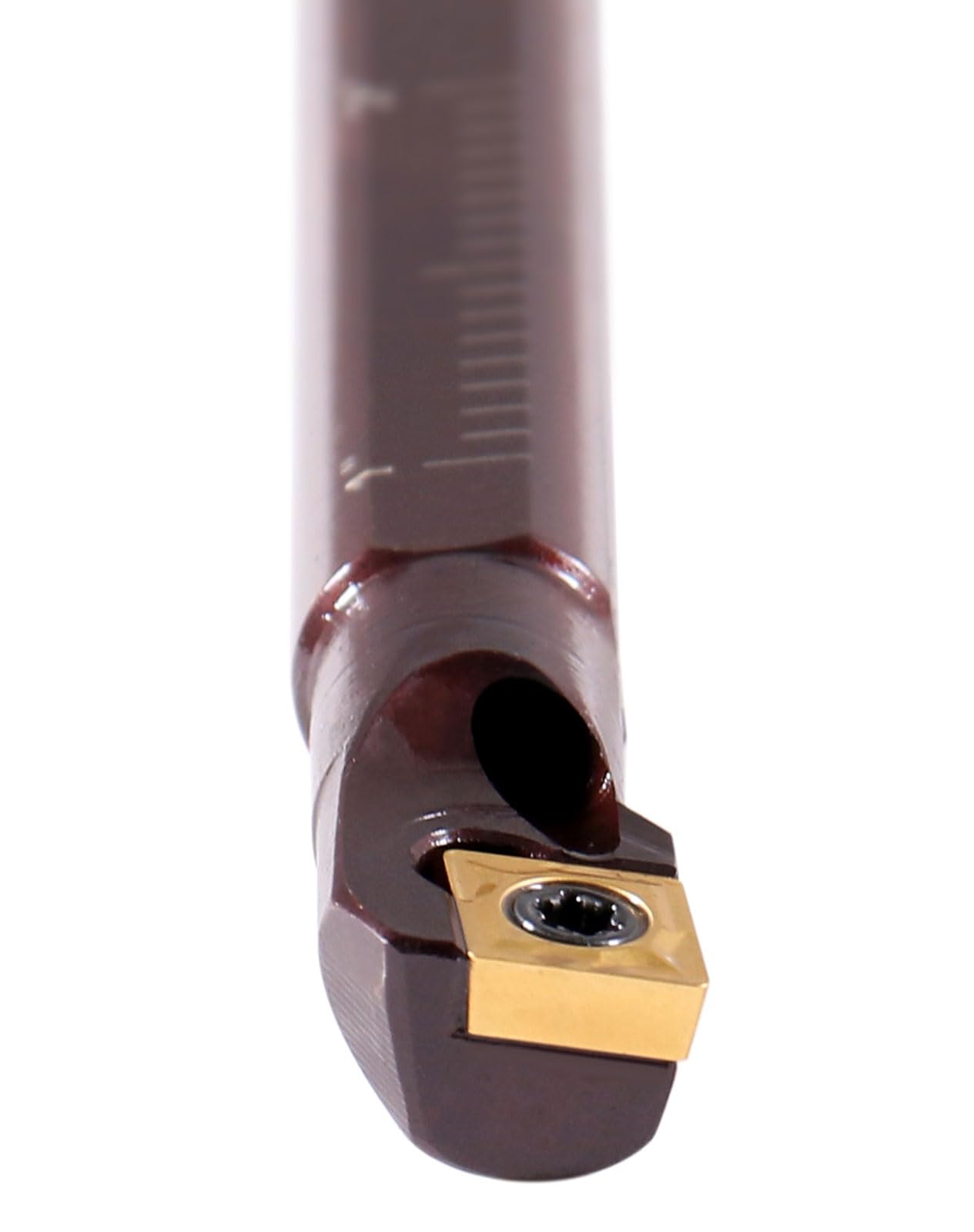

Accusize 3/8" Right-Hand SCLCR Coolant Through Indexable Boring Bar
4 sold in last 24 hours
- Precision Engineered: 3/8" Shank, 4.33" OAL; designed for right-hand use, perfect for small to medium bores with a min bore of 0.480".
- Advanced Cooling: Coolant-through technology ensures efficient chip flushing and cooling, prolonging tool life and enhancing performance.
- High-Quality Inserts: Includes a TiN coated CCMT21.5 carbide insert for superior cutting, complemented by a key for easy installation.
- Robust Construction: Crafted from hardened nitride steel, offering extended durability and resistance to wear in demanding conditions.
- Optimal Geometry: Features a 13° approach angle and a 0.336" neck diameter, maximizing access and reducing tool deflection for finer finishes.
Tags |
Estimated shipping
Select a product to estimate shipping.3/8'' x 4.33'' RH SCLCR Coolant Through Indexable Boring Bar with CCMT Insert 21.51, #2800-0035
Shank Diameter: 3/8''

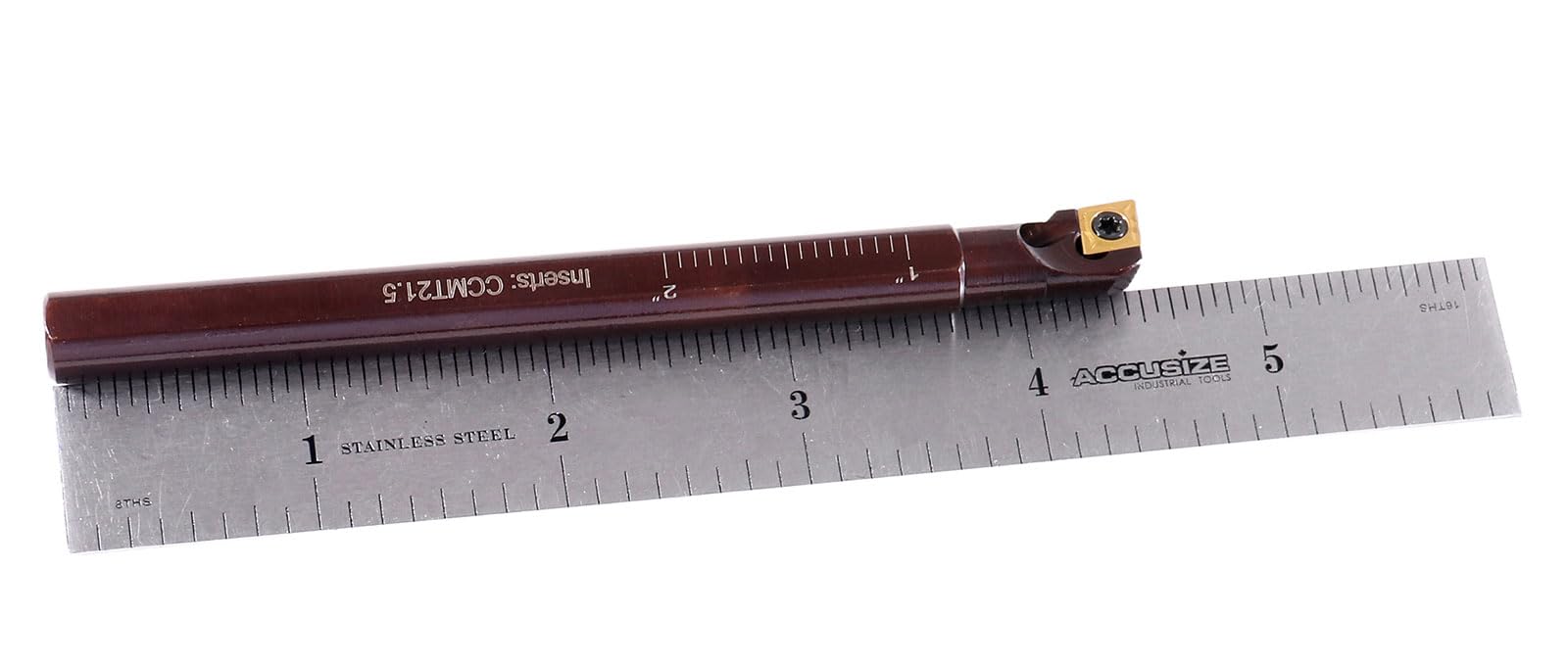

Overall Length L: 4.33''
Neck Diameter d: 0.315"
Min. Bore B: 0.472''
F: 0.236"
Neck Length A: 1.260"
SW: 0.355"

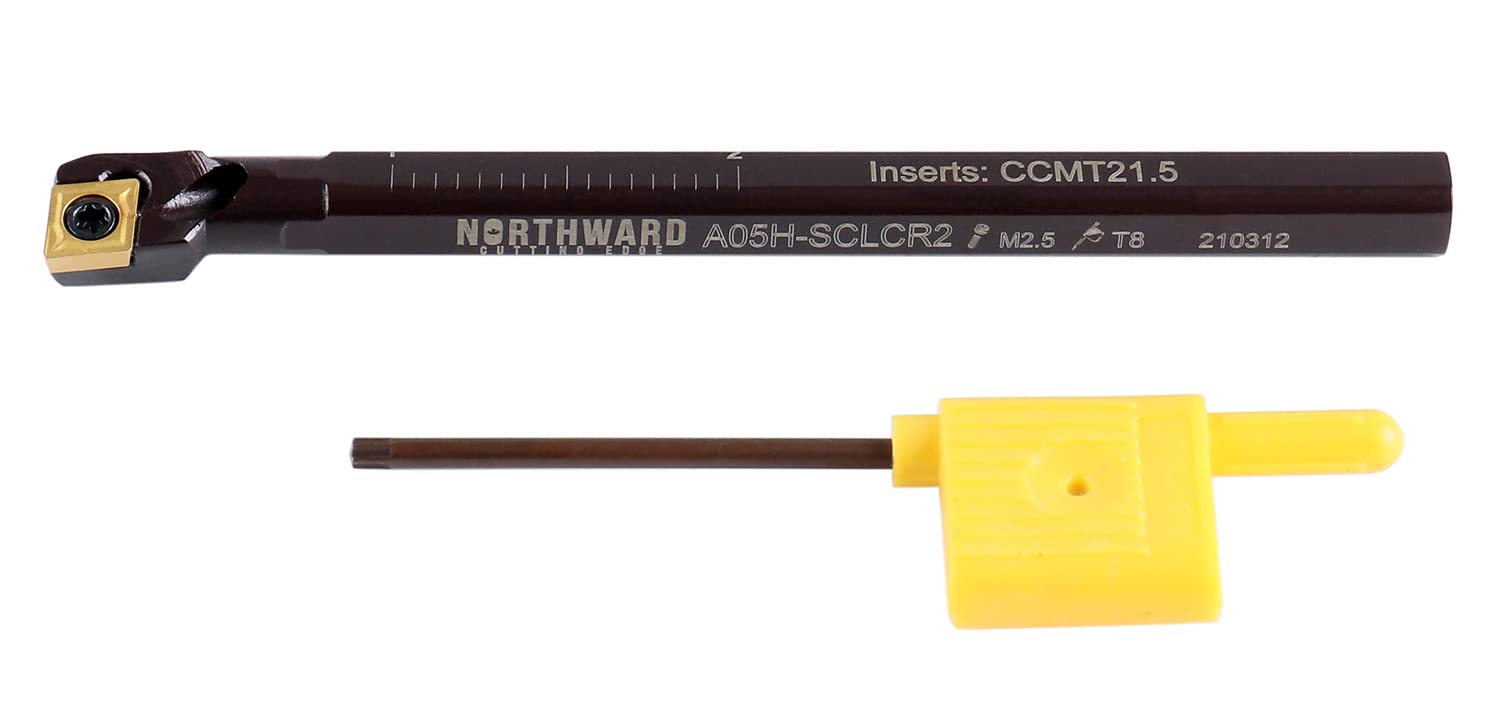

Model: #A05H SCLCR-2
Accepts Inserts CCMT 21.51 and CCMT 21.52
Profiling bar for semi-finishing and finishing operations
Bar hardness approximately 45 HRC
Extreme gloss finish
Negative 5-degree end & side cutting angle
Positive 80-degree diamond CCMT inserts
Boring from Light roughing to finishing in small bores
General purpose boring bar fitted with rhomboidal positive inserts (80°angle) which are free cutting with strong cutting edges
The coolant hole with a diameter range varying between 3/32" and 5/32" in accordance with the bar size allows to cool the cutting edge and remove chips
The insert is set at a 0° rake angle and an inclination angle shown in the table below
Made of tool steel with nitrogen superficial treatment, hardness 60 HRC, blackening by PVD coating, thickness 0.0002"

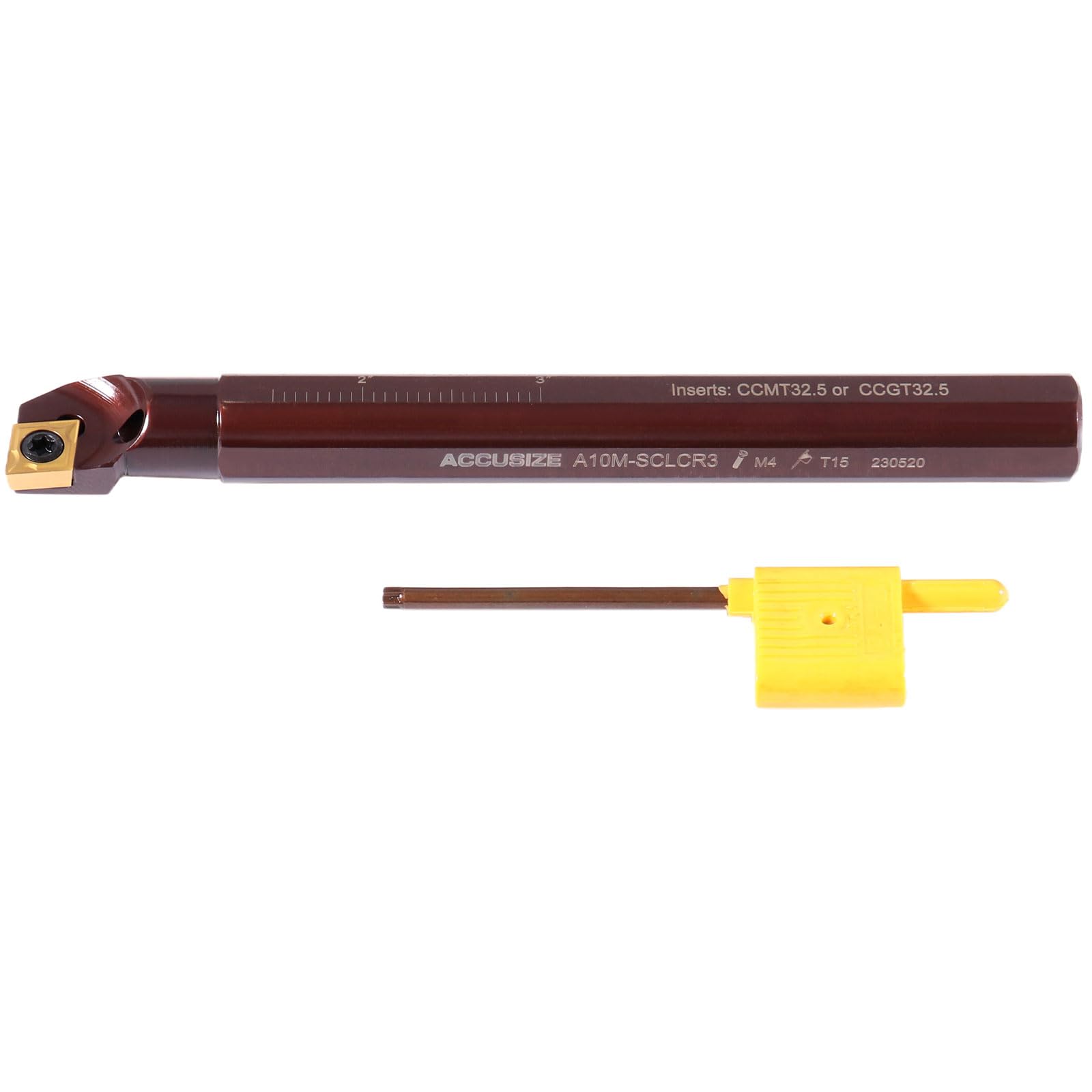

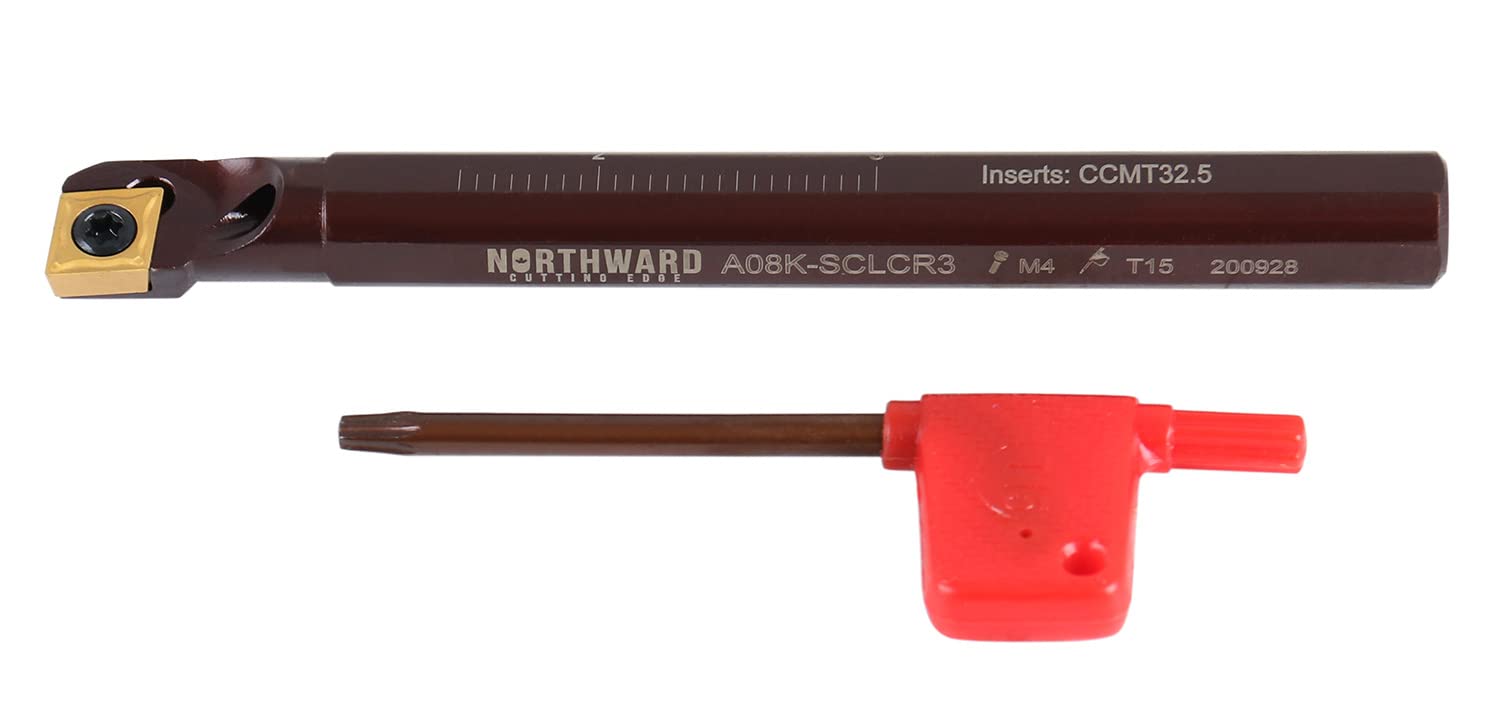

Insert CCMT 32.52 Included & Key Included
3/8'' Boring Bar
Coolant Through
Specifications
Features
Insert CCMT 21.51 Included & Key Included
Product details
| Main Specification | |
|---|---|
| Tillverkare | Accusize Co., Ltd. |
| Brand varumärke | Accusize Industrial Tools |
| Produkt Dimensioner | 1.18 x 1.18 x 4.33 inches |
| Punktvikt | 1.21 Pounds |
| Product information | |
| Punktmodellnummer | 2800-0035 |
| Others | |
| Datum först tillgänglig | 2013 or December 16 |
| Produkttyp | Boring Inserts |
