Sauermann Si-30 Mini Condensate Removal Pump for Mini Split AC, 230V
5 sold in last 24 hours

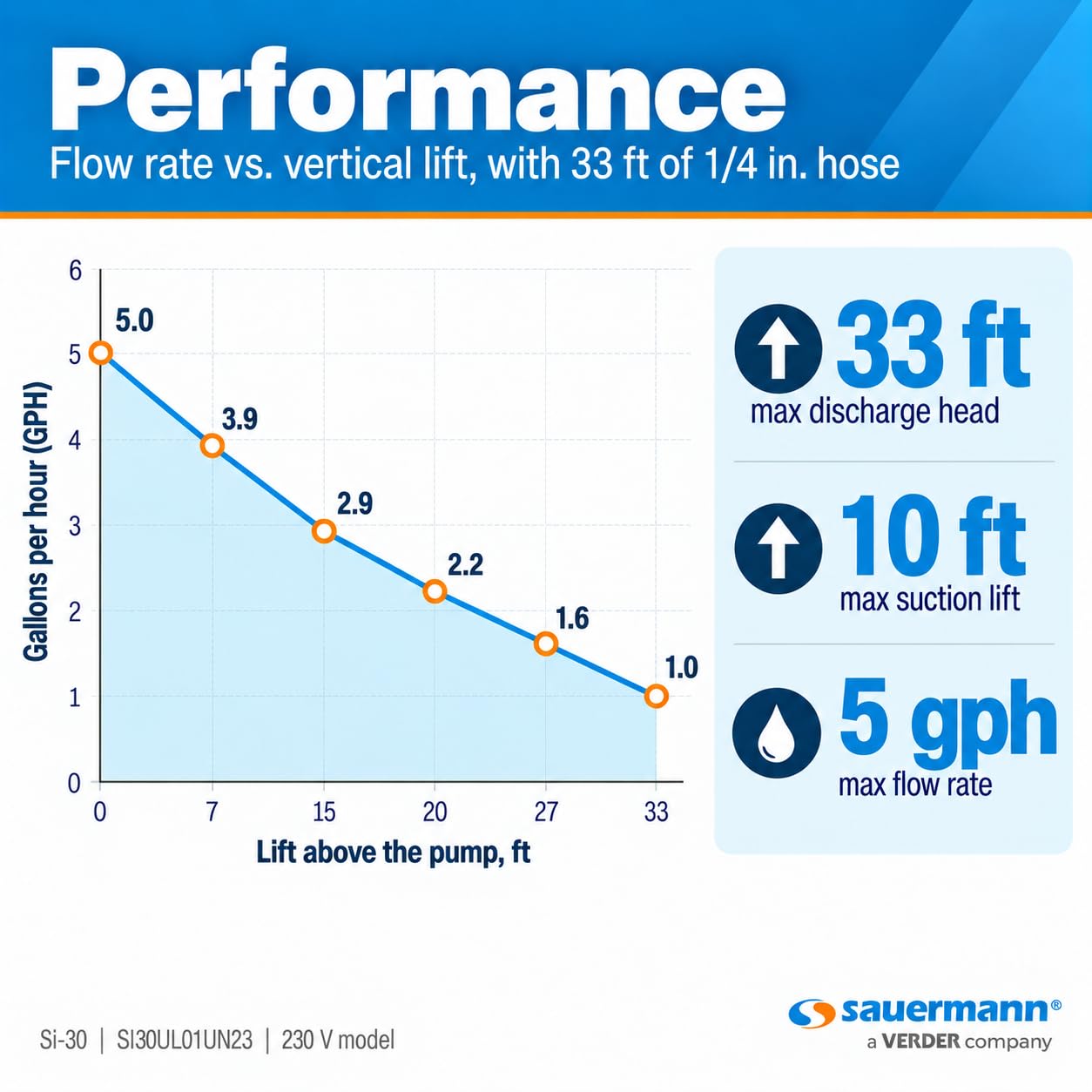

- FOR AC UNITS UP TO 5.6 TONS (20 kW): Automatic mini split condensate pump for ductless wall-mounted, ceiling, ducted and fan-coil air conditioners. 5 GPH max flow, 33 ft max lift, 10 ft suction head
- ULTRA QUIET, 20 dBA: Sound level independently tested to EN ISO 3744 and does not rise with condensate volume. Anti-vibration bracket limits vibration transfer to the wall, panel or pipework
- PATENTED PISTON TECHNOLOGY: Moves small particles and dirty condensate water that clog other HVAC condensate pumps. Pre-fitted Drain Safe Device retains prime and extends pump life. Auto-reset thermal protection
- INSTALLS ABOVE THE UNIT: Compact 2.6 x 1.8 x 2.4 in pump mounts to wall, ceiling or pipework with the included bracket. Remote float detection unit sits in the drain pan. Lockable plug-in power cord
- 230V 50/60 Hz, UL AND CSA CERTIFIED: NC safety switch shuts the AC down on overflow. Includes pump, Si-2958 detection unit, bracket, 1/4 in PVC tubing, 5 ft power cable, elbow, vent tube and adhesive
Estimated shipping
Select a product to estimate shipping.Important information
Legal Disclaimer
Box has slight tear, otherwise new and unused with all components and manual included.

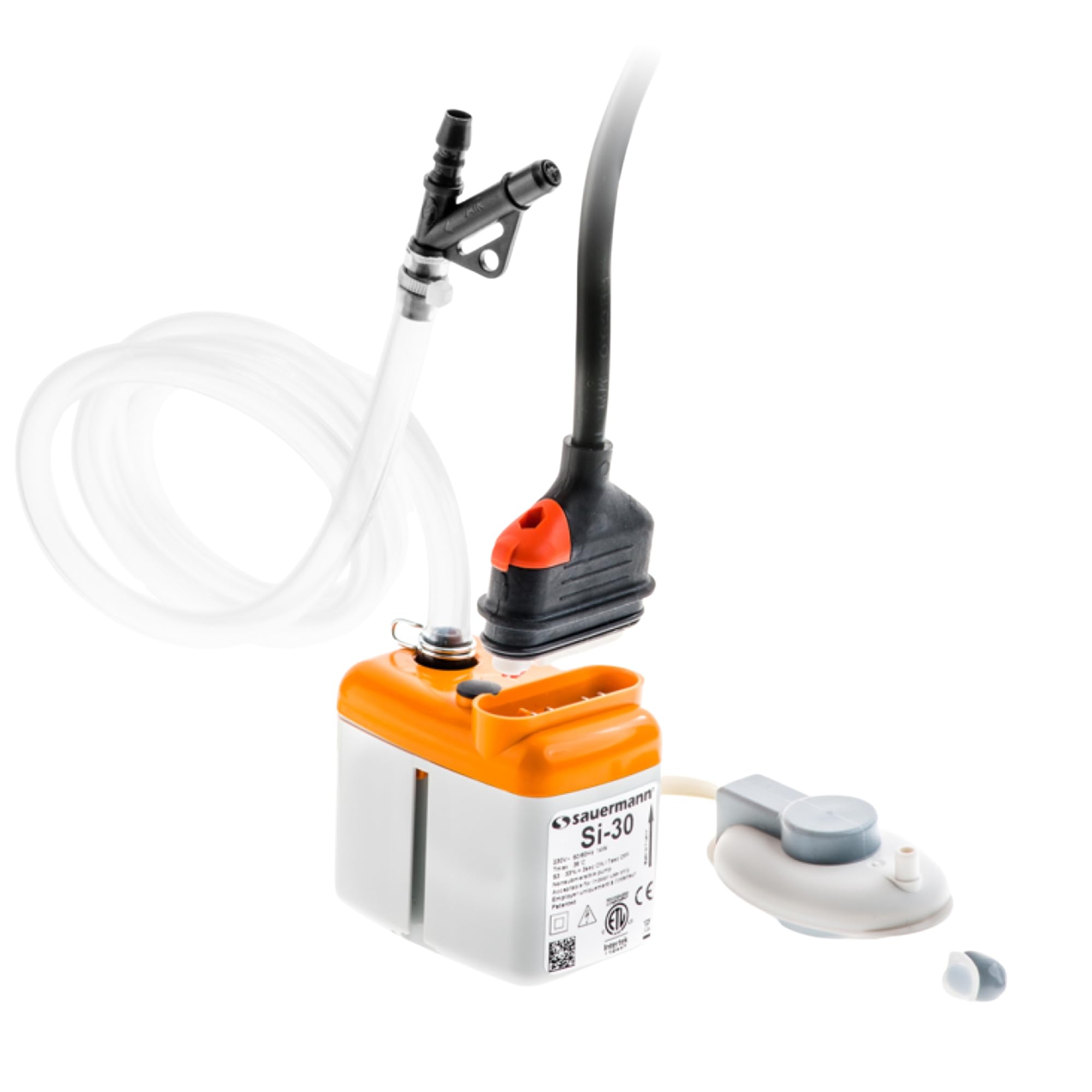

Sauermann Si-30 Mini Condensate Pump
Quiet, Reliable Condensate Removal for Mini Split Air Conditioners
The Sauermann Si-30 is a compact piston condensate pump for ductless wall-mounted, ceiling, ducted and fan-coil air conditioners up to 5.6 tons (67 kBtu / 20 kW). It runs at just 20 dBA, handles dirty condensate that can clog other pumps, and installs above the unit with a remote float detection unit that sits in the drain pan. With 5 GPH max flow and 33 ft max lift, it gives installers flexibility in routing the drain line.
Built for Mini Split Installations
Ultra Quiet at 20 dBA
Sound level independently tested to EN ISO 3744 and does not rise with condensate volume. The anti-vibration bracket limits vibration transfer to the wall, panel or pipework, making it well suited to bedrooms, offices and other quiet spaces.
Patented Piston Technology
The piston design moves small particles and dirty condensate water that can clog other condensate pumps. A pre-fitted Drain Safe Device helps the pump retain its prime and extends pump life.

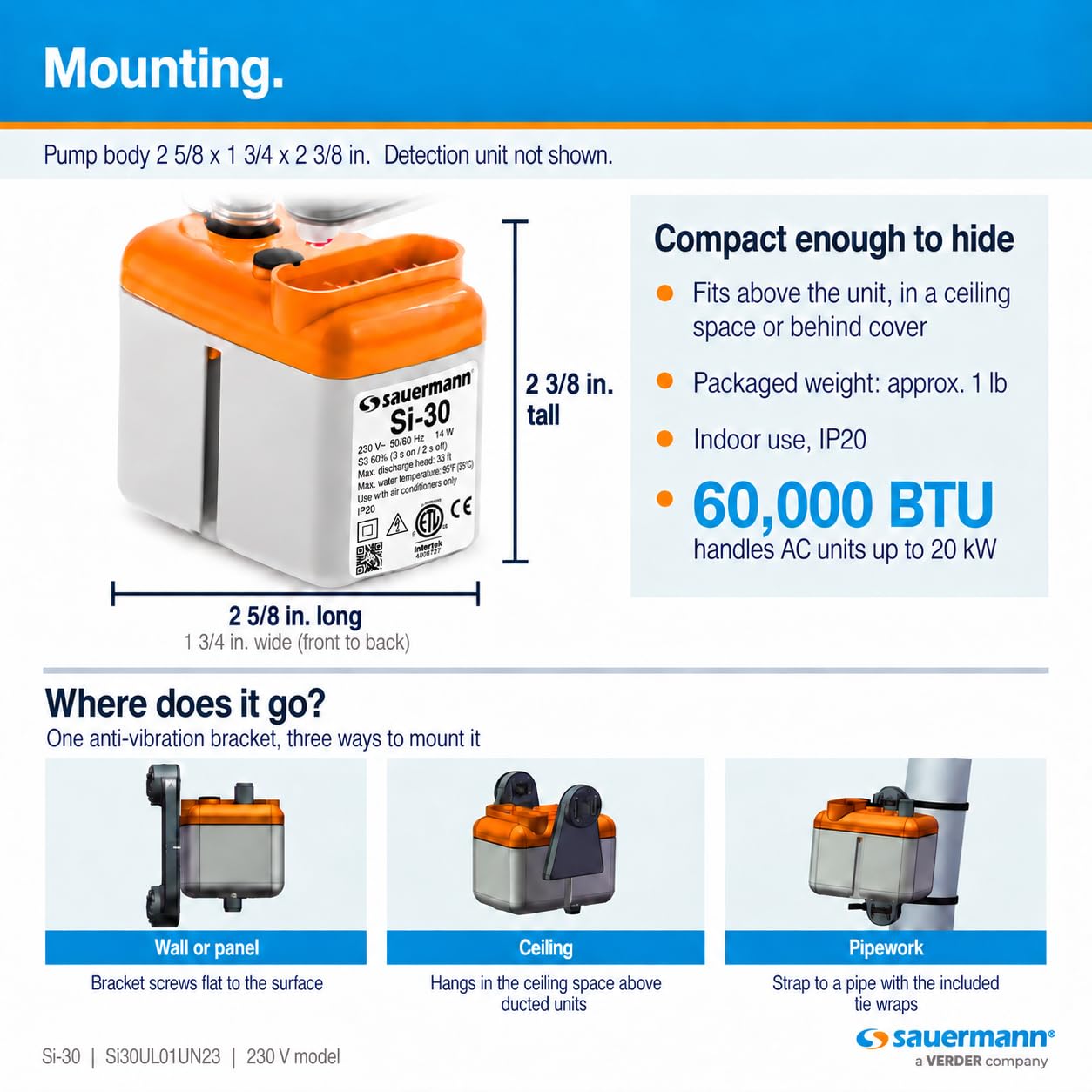

Compact, Mounts Above the Unit
At just 2.6 x 1.8 x 2.4 in, the pump mounts to a wall, ceiling or pipework with the included anti-vibration bracket, while the remote float detection unit sits in the drain pan. A locking power cable clips onto the pump to help prevent accidental disconnection.
Built-In Overflow Protection
A normally closed (NC) safety switch shuts the air conditioner down on overflow, and auto-reset thermal protection guards the pump. UL and CSA certified for 230V 50/60 Hz operation.

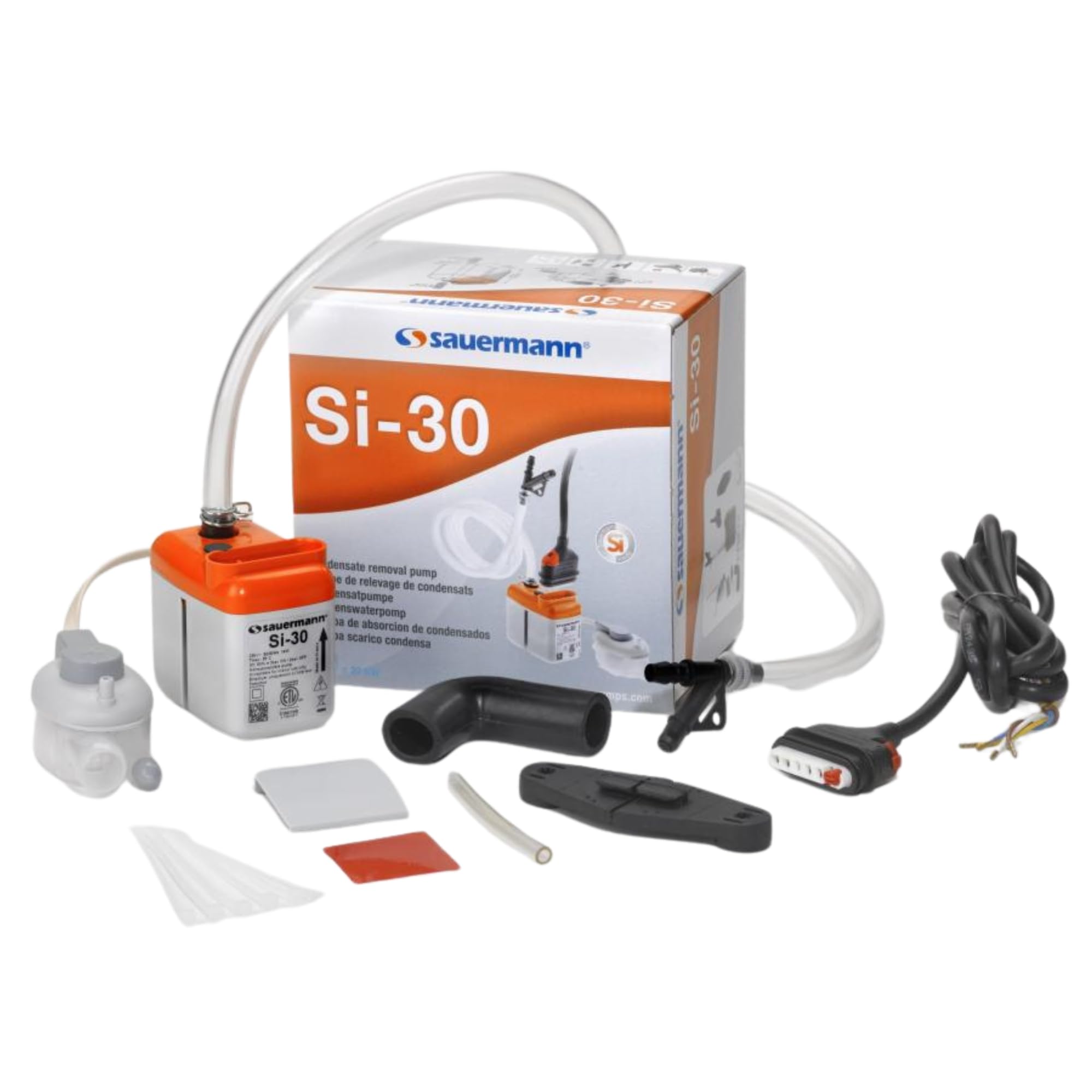

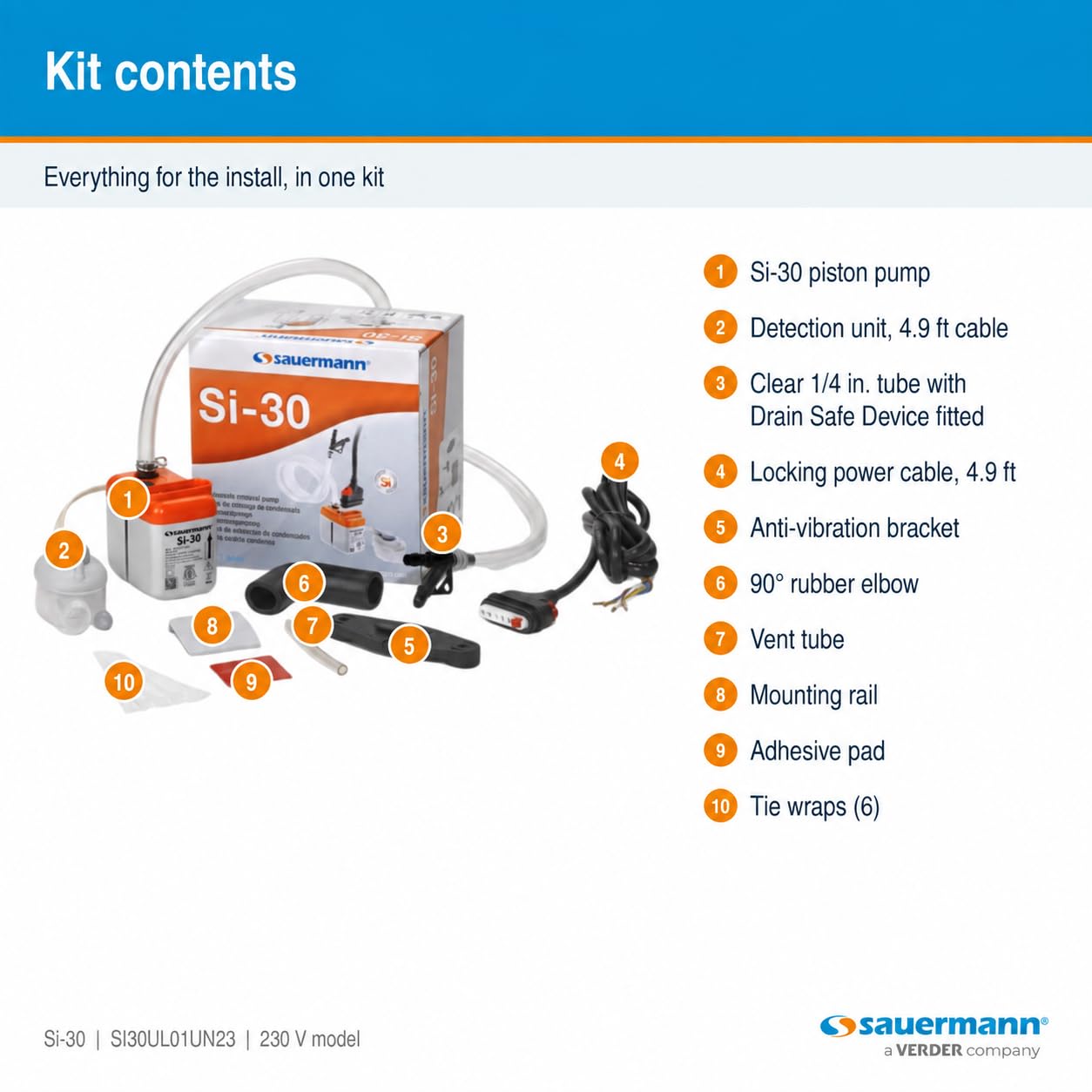

Everything You Need to Install
The Si-30 kit ships ready to install, with no extra parts to source:
Si-30 piston pump
Si-2958 remote float detection unit with 4.9 ft cable

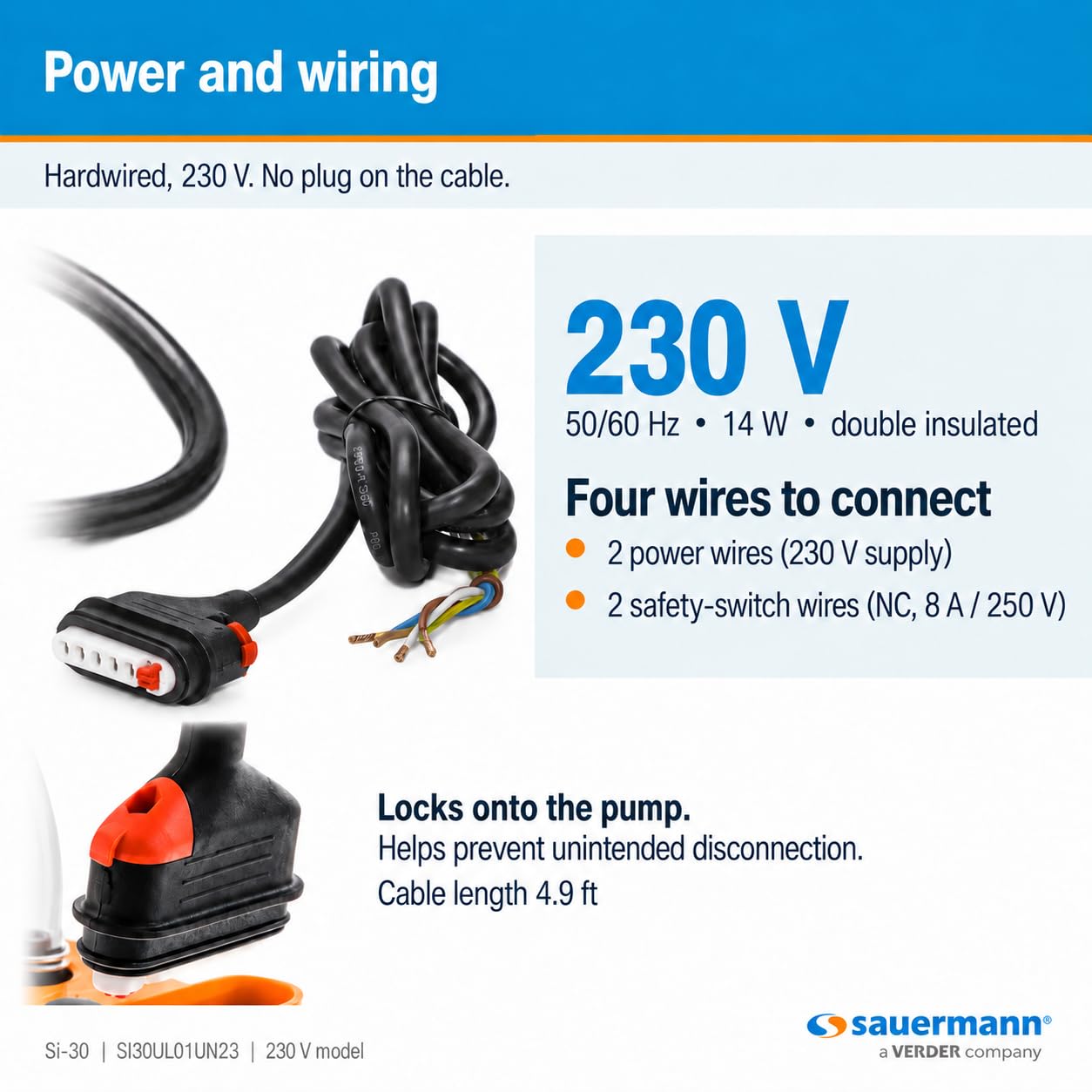

4.8 ft locking power cable (hardwired, no plug)
Clear 1/4 in tubing with pre-fitted Drain Safe Device
Anti-vibration mounting bracket and mounting rail
90° rubber elbow and vent tube
Adhesive pad and 6 tie wraps
Si-30 230V Technical Specifications
Product details
| Main Specification | |
|---|---|
| Tillverkare | Sauermann |
| Unit Count | 1 Räkna |
| Specifika användningar för produkter | HVAC Systems |
| Maximum Lifting Height | 33 feet |
| Brand varumärke | Sauermann |
| Antal objekt | 1 1 |
| Power Source | Ac/dc |
| Voltage | 230 volts_of_alternating_current |
| Materialmaterial | Plast |
| Färg | Black |
| Stil | Mini |
| Punktvikt | 0.48 kg |
| Product information | |
| Antal Packs | 1 1 |
| Technical Details | |
| Tillverkare delnummer | SI30-230V |
| Materialtyp | Plast |
| Maximal flödesfrekvens | 0.08 gpm |
| Flow Rate | 0.08 gpm |
| Item details | |
| Modellnummer | 2230G301 |
| Others | |
| Item Highlight | Ultra quiet 20 dBA piston condensation pump for HVAC or ductless and wall mounted AC units up to 5.6 tons or 5 GPH or 33 ft lift |
| Produkttyp | HVAC Condensate Pumps |
| Produktstil | Mini |
