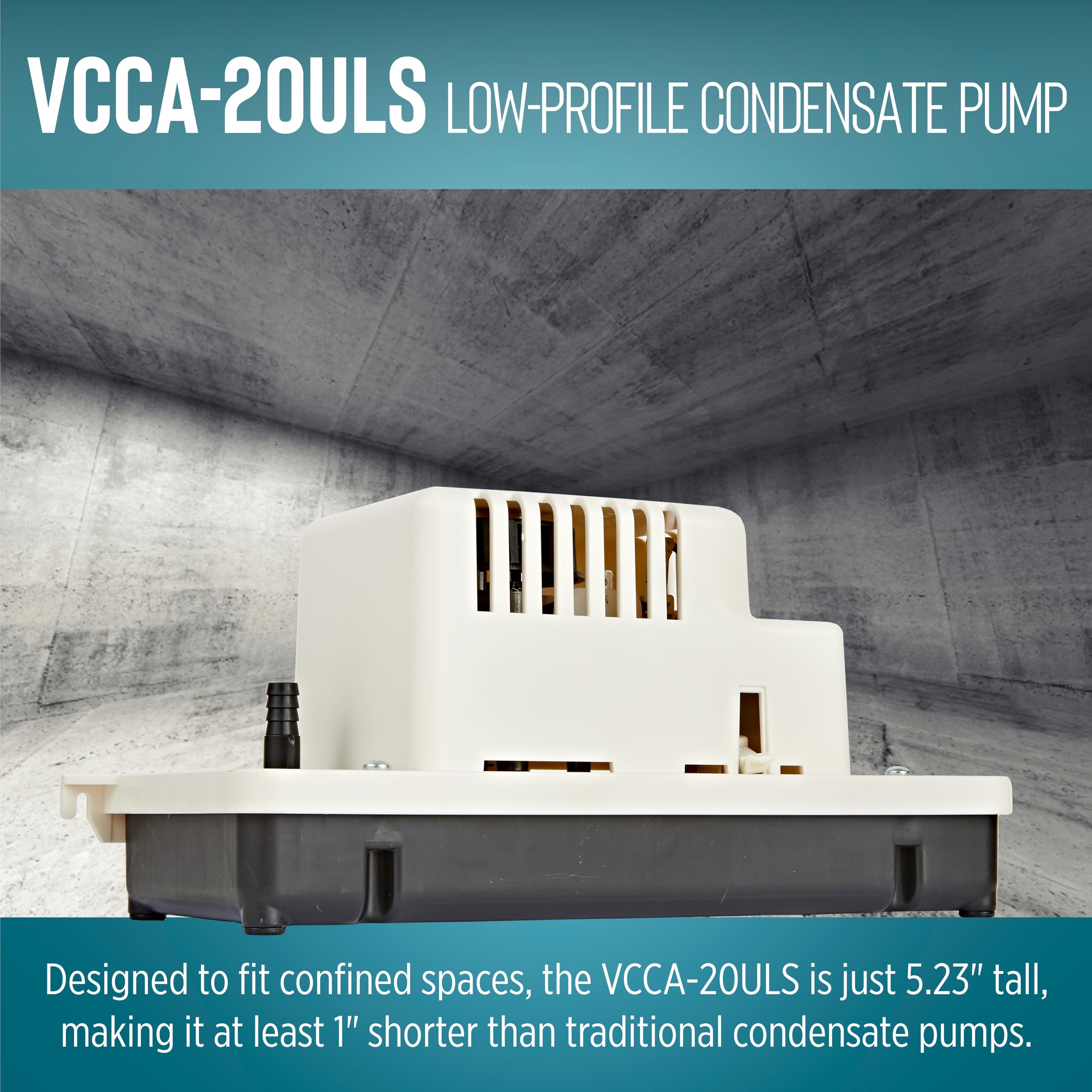

Little Giant VCCA-20ULS 115V, 80 GPH Low Profile Condensate Pump
7 sold in last 24 hours

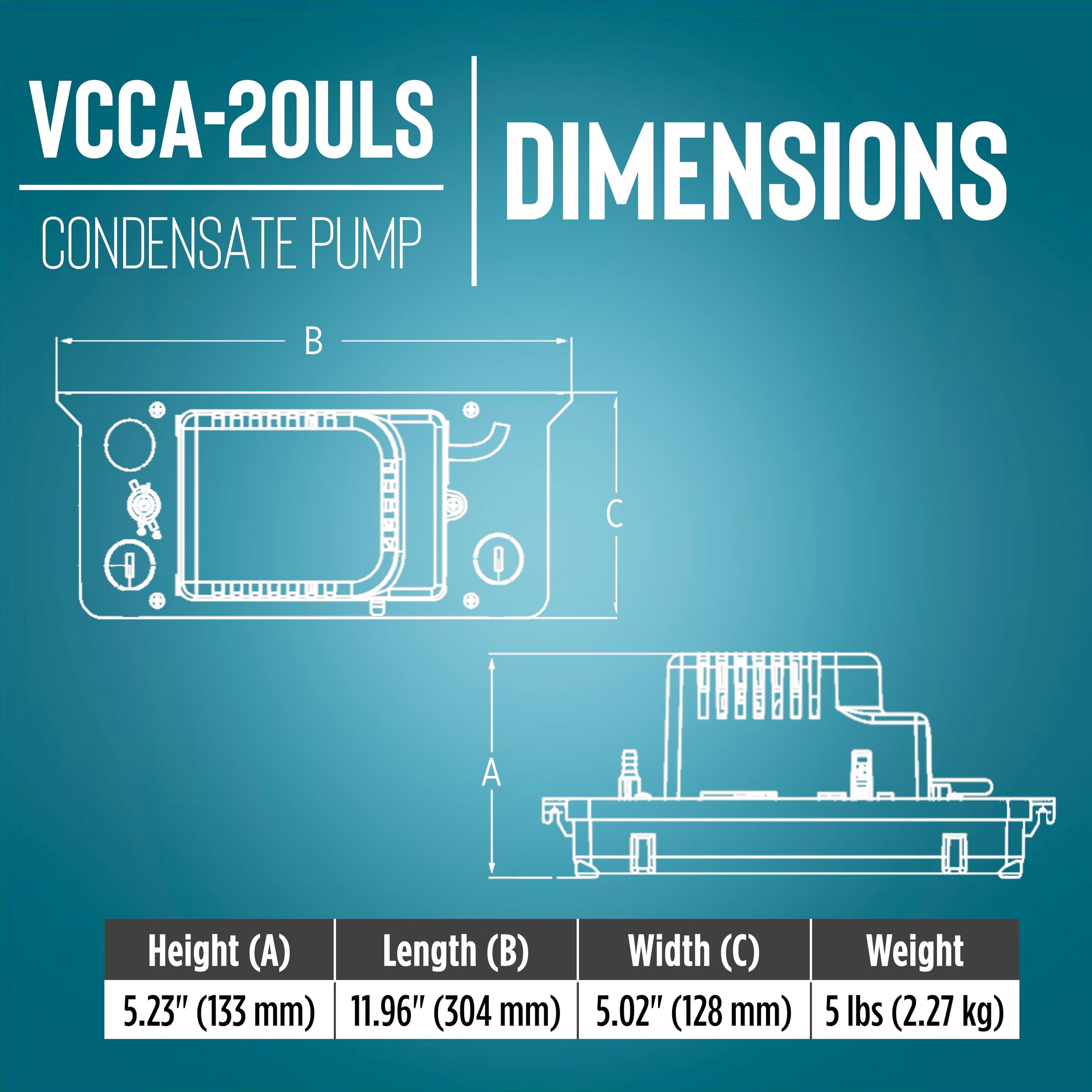

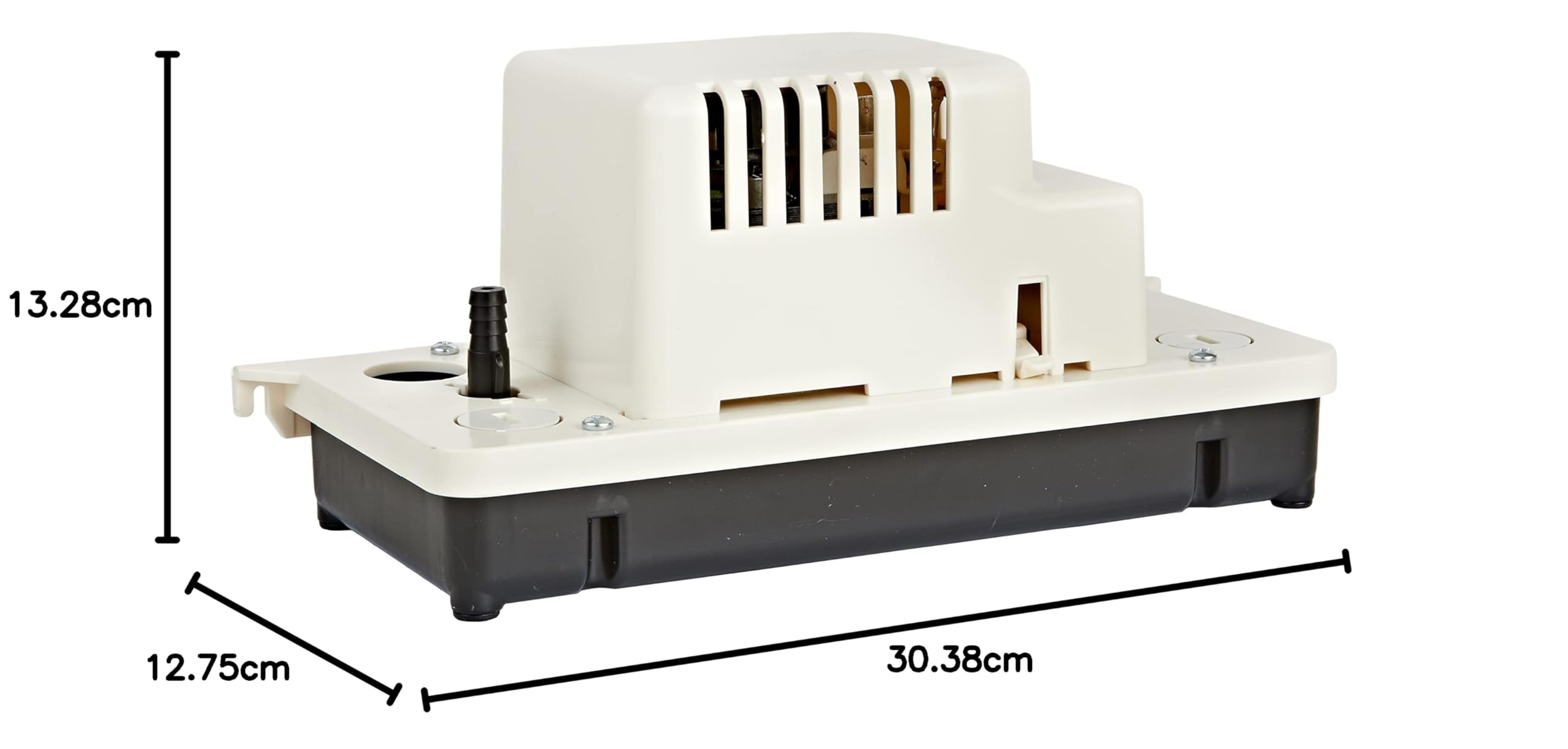

- LOW-PROFILE CONDENSATE REMOVAL PUMP: the low tank height allows the pump to be used where other condensate pumps will not fit; unit dimensions are 11.96 in. wide x 5.02 in. deep x 5.23 in. high

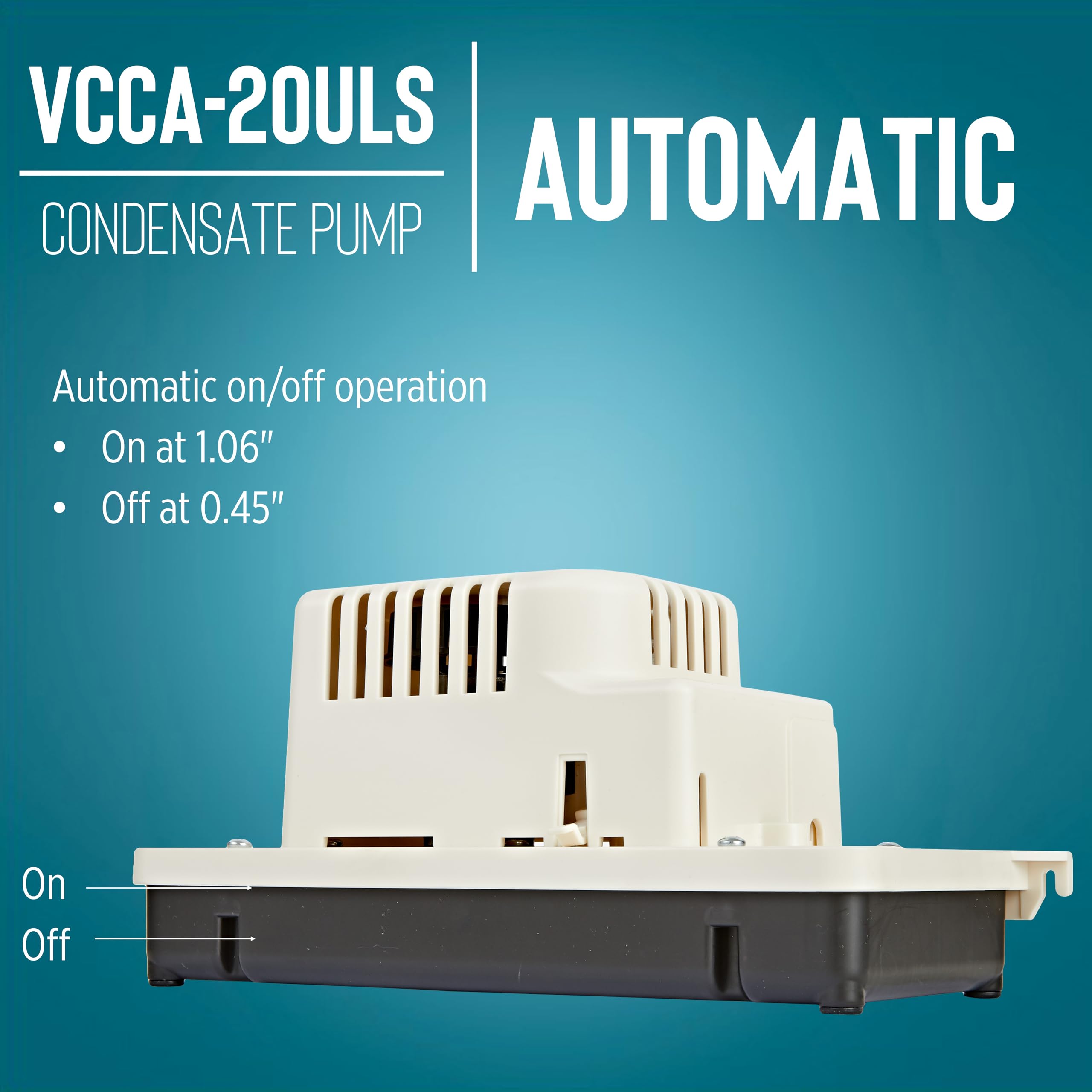

- AUTOMATIC CONDENSATE REMOVAL: designed for the collection and removal of condensate from air conditioners, refrigerators and dehumidifiers
- Suitable for high efficiency condensing furnaces and boiler equipment
- CHECK VALVE INCLUDED: includes 1/4-turn, twist-off locking check valve discharge adapter for 3/8-in. ID tubing and an additional adapter for 1/4-in. ID vinyl tubing

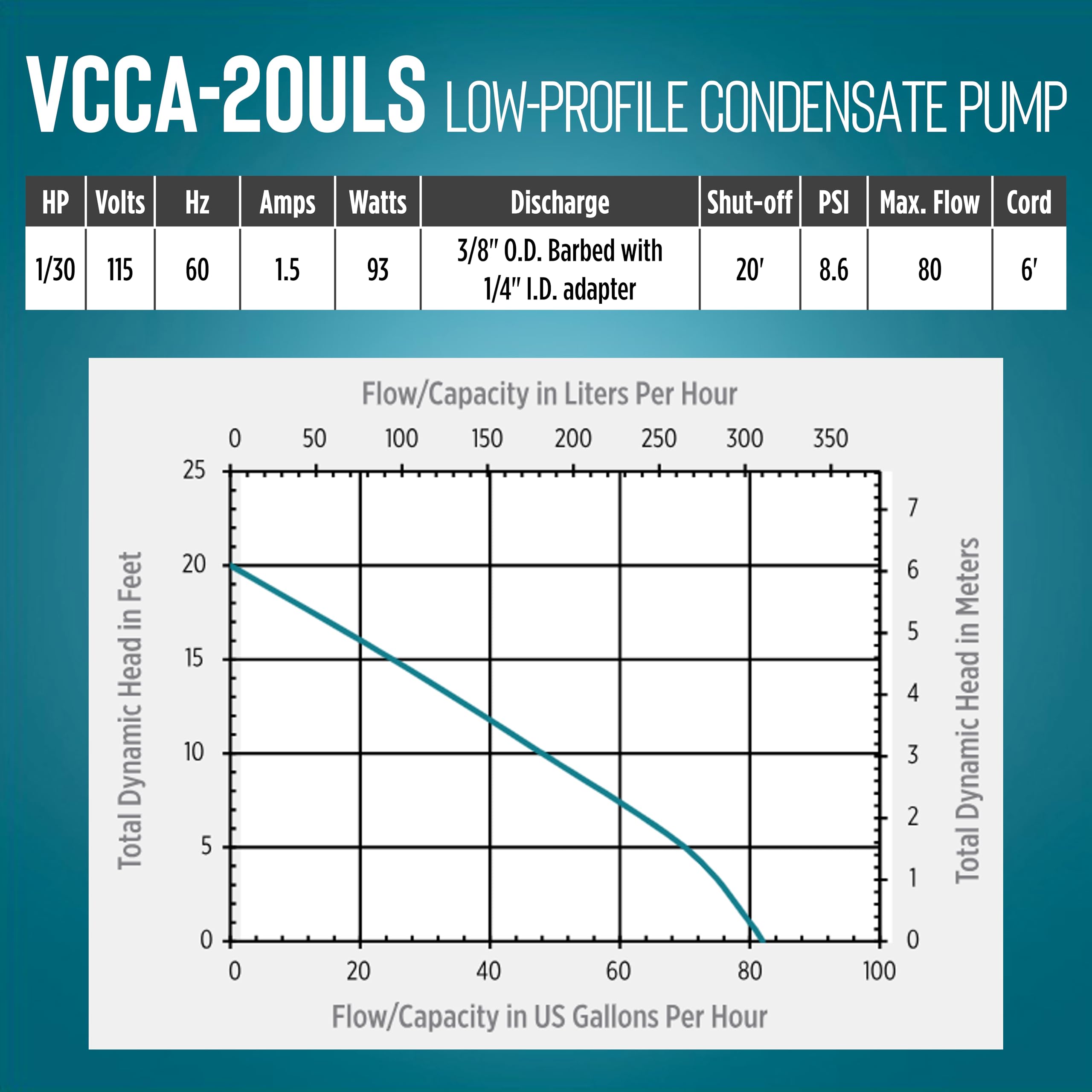

- SPECIFICATIONS: 1/30 HP, 80 GPH at 1-ft. head, 20-ft. shutoff; Max PSI = 8.6, 6-ft. cord, 1.5 Amps, 93 Watts, cCSAus listed; thermal overload protected; overflow detection switch with 5-inch leads
Tags |
Estimated shipping

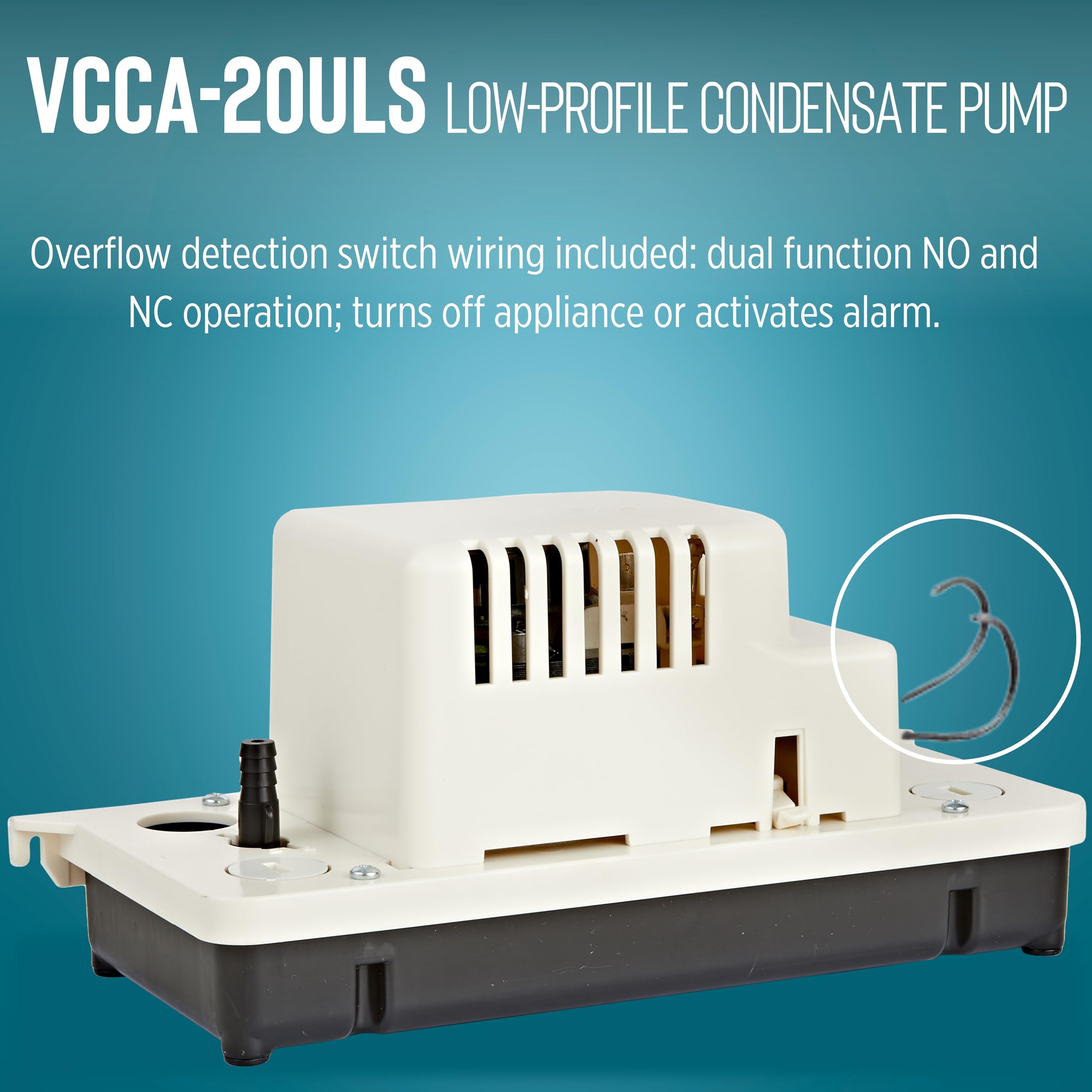

Select a product to estimate shipping.The Little Giant VCCA-20ULS 115-volt, low-profile condensate pump is suited for tight spaces. The dimensions are 11.96" long x 5.2" wide x 5.23" high. It is designed to removed condensate from air conditioners, refrigerators, dehumidifiers, boilers and furnaces. This pump comes with a safety switch which can be wired to shut down the system if an overflow situation is detected or it can be wired to activate an audible or visual alarm (not included.). This pump comes with a 6' cord and 3-prong plug. This pump is UL listed in Canadian and the USA.

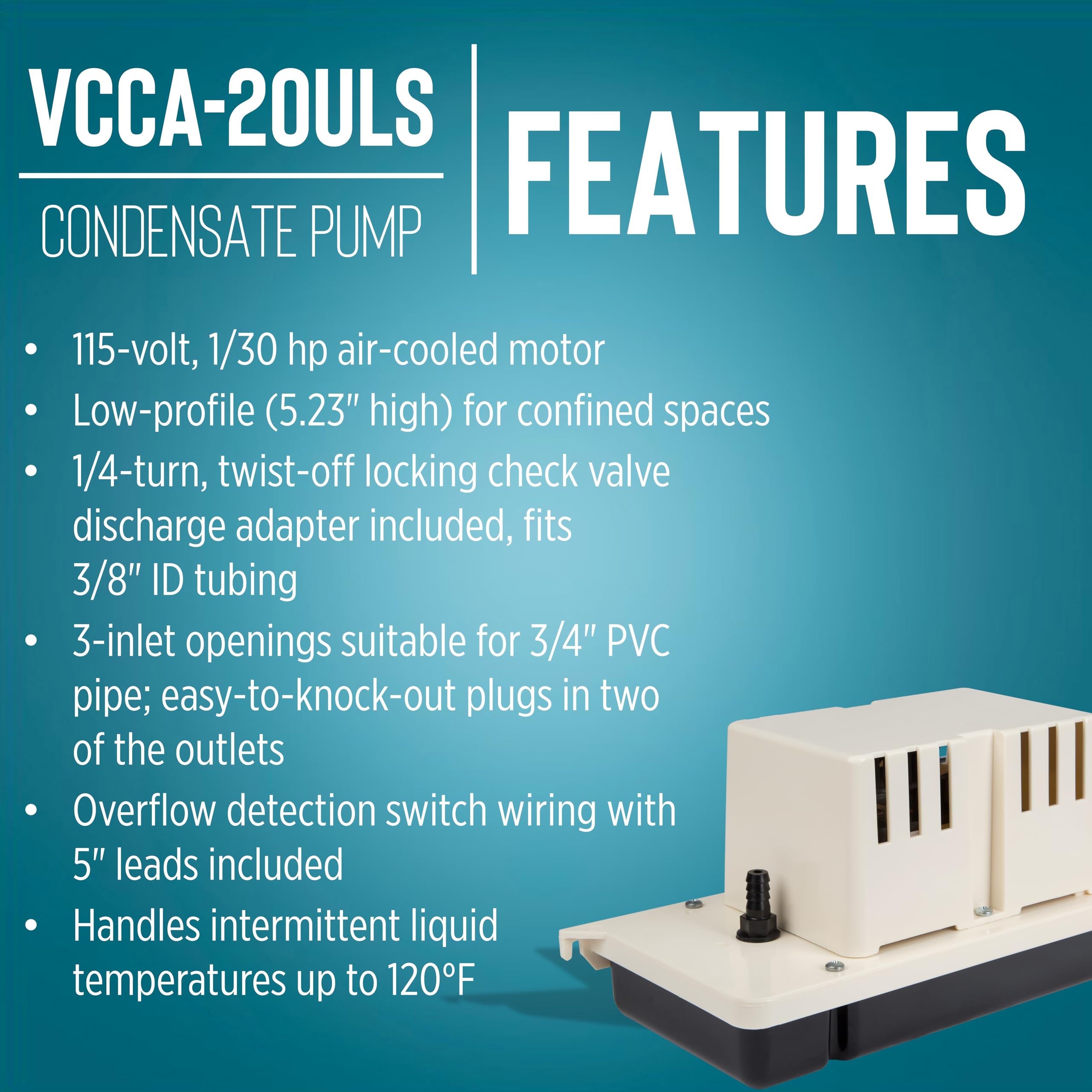

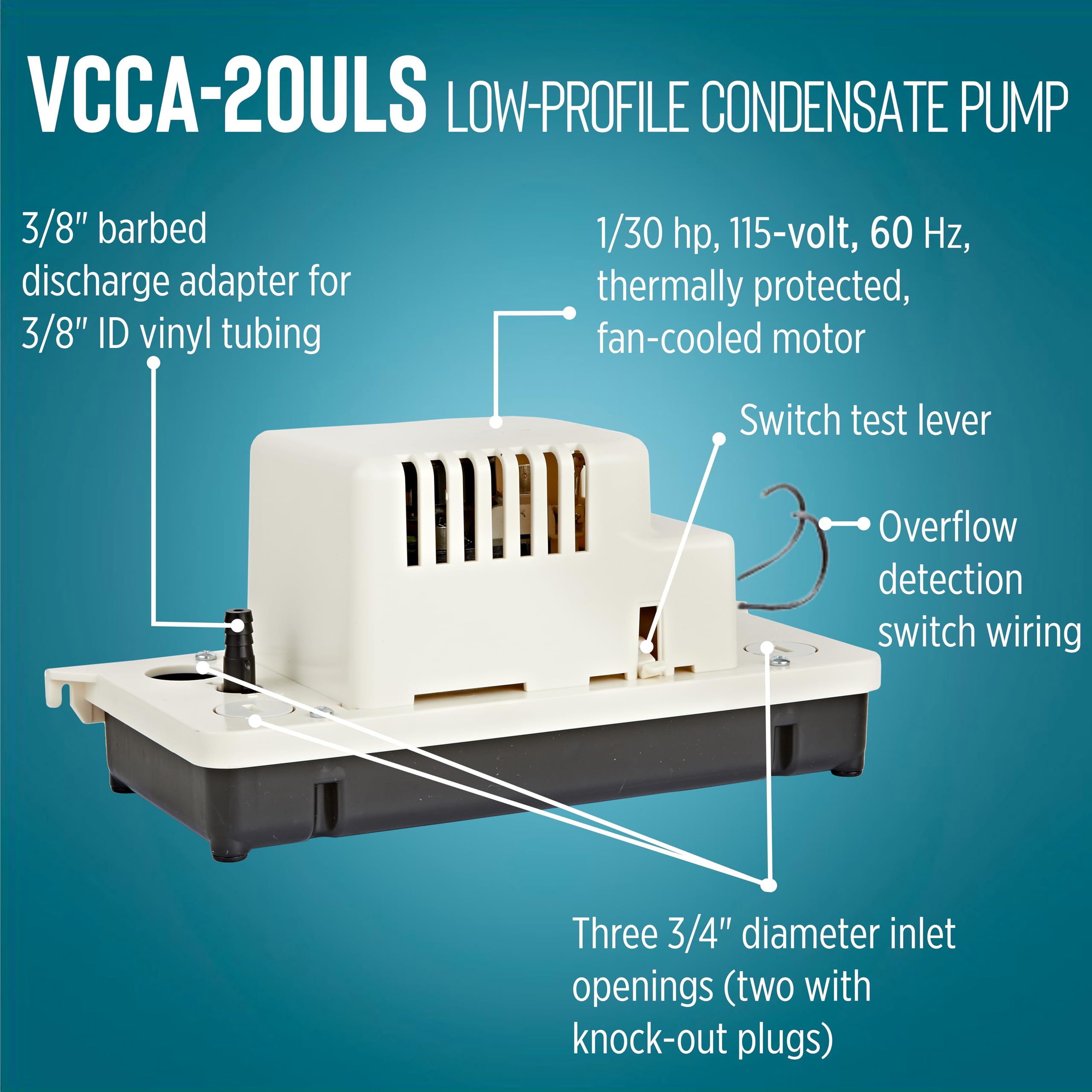

The VCCA-20ULS delivers up to 80 gph with a 17' shut-off and maximum of 7.4 PSI. It can handle intermittent liquid temperatures up to 120 °F. The VCCA-20ULS has 3-inlet openings suitable for 3/4" PVC pipe. Rubber feet on the bottom of the tank reduces noise when place on a hard surface. This pump comes with a switch test lever. It is equipped with a 1/4-turn, twist-off locking check valve discharge adapter for 3/8" ID tubing and an additional check valve adapter is included for 1/4" ID vinyl tubing.

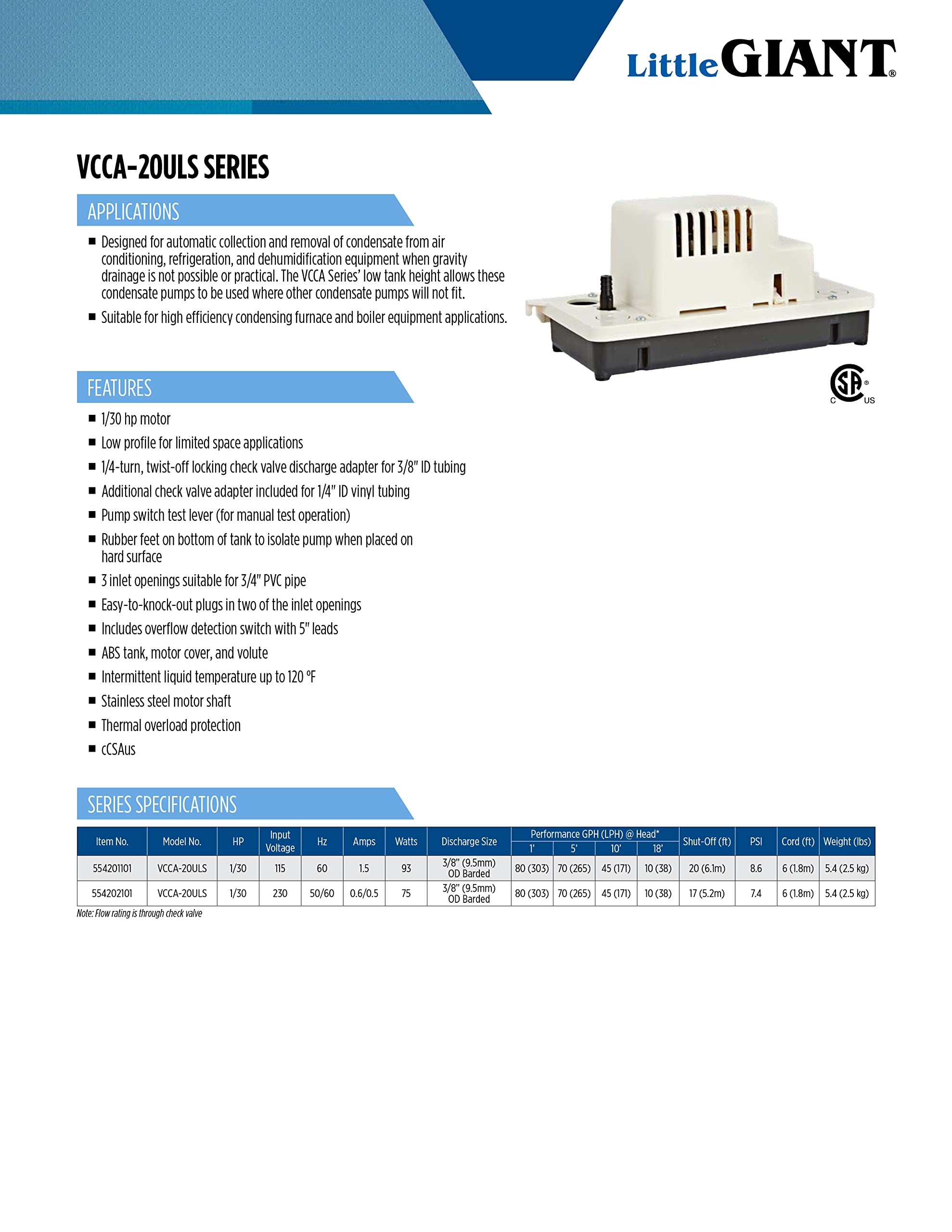

VCCA-20ULS 554201101 (115-Volt) Technical Specifications
Can't find the product you're looking for?
Stop by the Little Giant store and you'll find similar products under the HVAC category.
Product details
| Main Specification | |
|---|---|
| Specifika användningar för produkter | Professionell professionell or Inside or Amateur |
| Inkluderade komponenter | Owner's Manual or 1/4-inch adapter or 6-Ft. Cord with Plug or Pump with low profile tank or Safety Switch |
| Stil | 115-Volt or Low-Profile or 6' Cord |
| Tillverkare | Franklin Electric Co., Inc. |
| Unit Count | 1 Räkna |

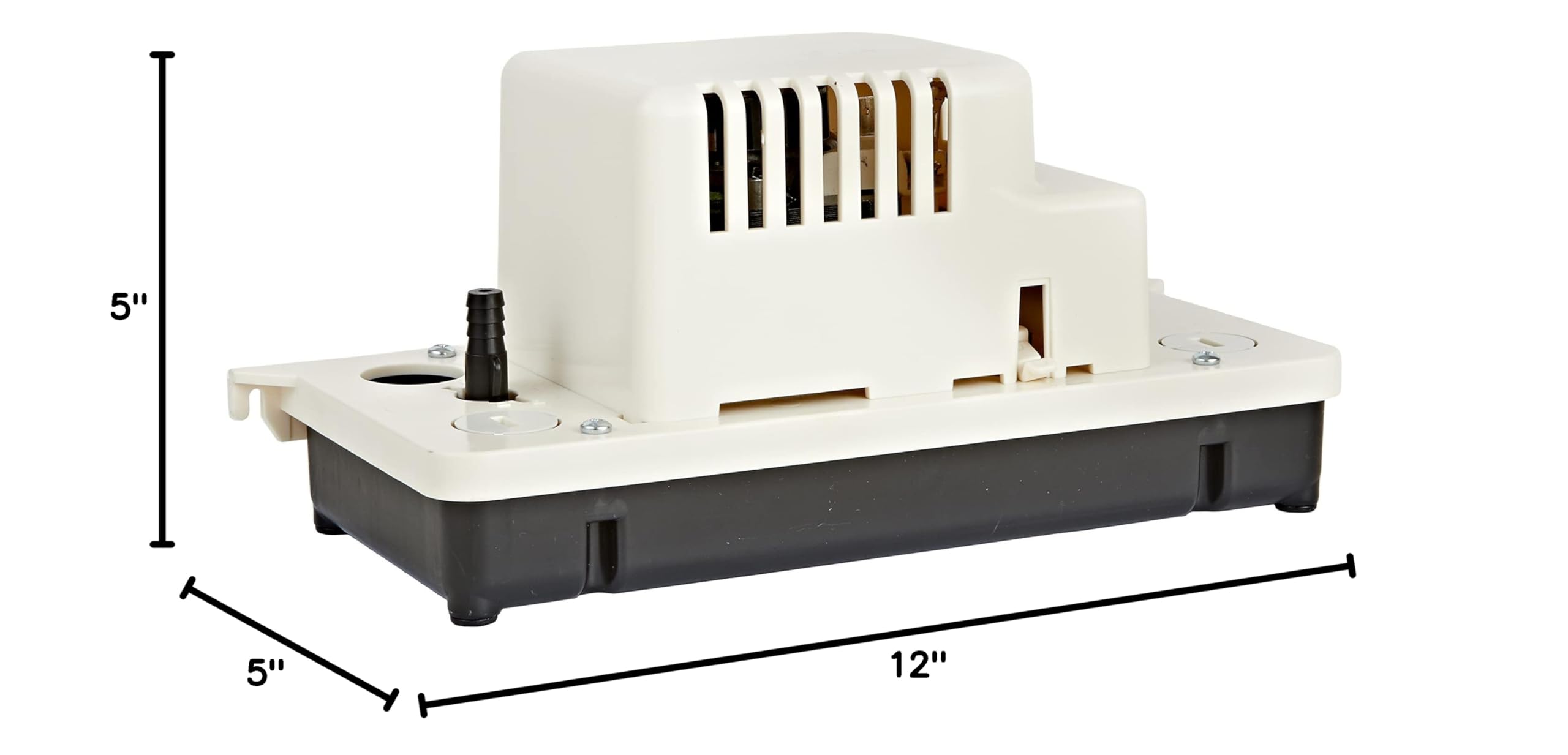

| Punkt dimensioner L x W x H | 5"L x 12"W x 5"H |
| Maximum Lifting Height | 20 feet |
| Brand varumärke | Little Giant |
| UPC | 029753005766 |
| Antal objekt | 1 1 |
| Hästkraft | 0.03 |
| Power Source | Corded Electric |
| Produkt Dimensioner | 5"L x 12"W x 5"H |
| Voltage | 115 volt |
| Materialmaterial | Acrylonitrile Butadiene Styrene (ABS) |
| Färg | White/Black |
| Punktvikt | 5 pund |
| Technical Details | |
| Tillverkare delnummer | 554201101 |
| Materialtyp | Acrylonitrile Butadiene Styrene (ABS) |
| Maximal flödesfrekvens | 1 gpm |
| Flow Rate | 1 gpm |
| Item details | |
| Modellnummer | 554201101 |
| Föremålstypnamn | 554201101 80 GPH 115-Volt Low Profile Automatic Condensate Removal Pump with Safety Switch |
| Tillverkare garantibeskrivning | 1 år tillverkare |
| Others | |
| Item Highlight | 6' cord w/ plug or 1/30 HP or 20' shutoff or Automatic or Safety switch included or 11.96" wide x 5.02" deep x 5.23" high or 554201101 |
| Produktstil | Low-Profile or 115-Volt or 6' Cord |
| Produkttyp | 554201101 80 GPH 115-Volt Low Profile Automatic Condensate Removal Pump with Safety Switch |
