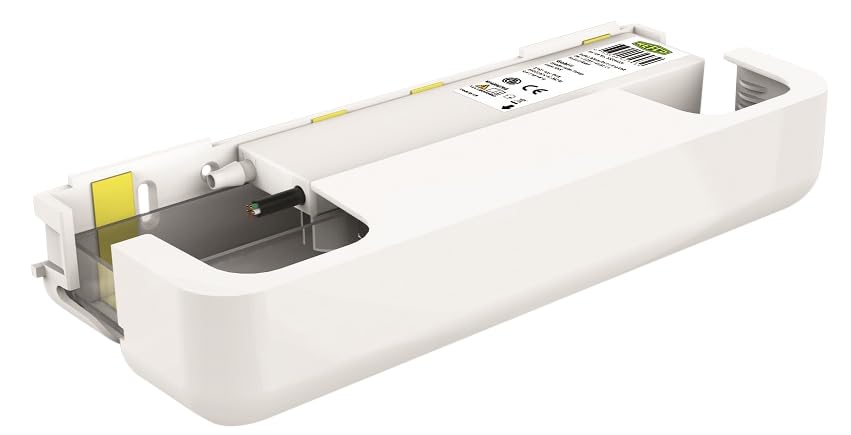

GOBI II Universal Condensate Pump, 11 GPH, 100-240V, for Systems from 6,000 to 120,000 BTU/h, Wide Range of Applications Including Indoor Air Conditioning, HVAC, Dehumidifier
9 sold in last 24 hours
- FOR PROFESSIONAL INSTALLATION: Intended for use by licensed trade professionals. Improper installation may reduce performance or shorten service life. Follow all manufacturer instructions and local code requirements.
- Strongest, quietest under A/C mounted condensate pump on the market: 11 gallon pumping capacity per hour; 65 ft delivery head; <19 dB noise level
- No float problems thanks to digital sensor
- Demand-oriented control of the pumping capacity
- Kit includes: Power cable, Alarm cable, Star tube and anti-siphon device, Screws (for mounting), Screw anchors, Factory-installed alarm fuse, Cable ties, Instruction manual
- Manufacturer Warranty Starts at Comissioning
- Universal use due to wide range of applications
Estimated shipping
Select a product to estimate shipping.The GOBI II condensate pump for direct mounting under the air conditioner is designed for systems from 6 000 BTU/h (1.75kW) up to 120 000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that contribute to making the Gobi II the most powerful and quietest condensate pump for air conditioning systems on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with just one pump.
Max. Flow Rate: 11 GPH
Max. Discharge Head: 65.6 ft
Max. Suction Lift: 10 ft
Noise Level: 19 dB(A)
Type: Diaphragm type
Tube Diameter: 1/4 ′′
Voltage: 100 - 240 VAC
Frequency: 50 / 60 Hz
Energy Consumption: 8 W
Protection Class: I
Alarm Relay: Interchangeable NO or NC, rated 250VAC, 6.3A or 28VDC, 6.3A
Ingression Protection: IP44
Cable Length: 5 ft
Operating Temperature Range: 41 - 104 °F
Water Temperature Range: 41 - 104 °F
Storage Temperature Range: -4 - 122 °F
Warranty period only starts with commissioning (readable via USB
| Main Specification | |
|---|---|
| Specifika användningar för produkter | HVAC Systems or Dehumidifiers or Air conditioning or Residential/Commercial installations |
| Inkluderade komponenter | Power Cable or Cable Ties or Alarm cable or Star tube and anti-siphon device or Screws (for mounting) or Screw anchors or Factory-installed alarm fuse |
| Tillverkare | REFCO |
| Unit Count | 1 Räkna |
| Dimensioner L x W x H | 11.3"L x 2.06"W x 2.09"H |
| Maximum Lifting Height | 65.6 feet |
| Brand varumärke | REFCO |
| Horsepower | 8 watts |
| Power Source | Corded Electric |
| Produkt Dimensioner | 11.3"L x 2.06"W x 2.09"H |
| Voltage | 240 volts_of_alternating_current |
| Materialmaterial | Plast |
| Färg | Vit vit |
| Stil | Undermount AC Universal |
| Technical Details | |
| Tillverkare delnummer | 3004145 |
| Materialtyp | Plast |
| Maximal flödesfrekvens | 0.18 gpm |
| Flow Rate | 0.18 gpm |
| Item details | |
| Modellnummer | 3004145 |
| Tillverkare garantibeskrivning | For assistance, please contact the seller through or Customer Service., Manufacturer Warranty, Professional Installation required. Improper installation may affect performance or coverage. |
| Others | |
| Produkttyp | HVAC Condensate Pumps |
| Produktstil | Undermount AC Universal |
