uxcell 50Pcs 1/4"x1/2" 304 Stainless Steel Large Flange Round Head Rivets
8 sold in last 24 hours
- Size & Packaging - Rivet body diameter is 6.4mm/0.25"; rivet body length is 14mm/0.55"; cap diameter is 16mm/0.63"; rivet diameter is 4.2mm/0.17"; rivet length is 34mm/1.34"; riveting range is 0.23"-0.31". The package contains 50 pieces of large-cap open-end blind rivets.
- Material - The large-cap open-end blind rivets are made of 304 stainless steel with a smooth surface, strong, acid-resistant, and corrosion-resistant. There is no need to worry about rust or breakage; they are suitable for long-term use.
- Design - Large cap round head blind rivets adopt a large cap design, providing a larger contact area, better load-bearing capacity on thin-walled materials, and enhancing stability.
- Easy to Use - Install a large flange round head rivet, insert it into the pre-drilled hole, and use a tool to pull the rivet until the core breaks, forming a stable and secure connection.
- Widely Applicable - Large flange round head rivets are widely used in automotive manufacturing (body panels), aerospace (aircraft structures), shipbuilding (hull connections), and construction (steel structures).
Tags |
Estimated shipping
Select a product to estimate shipping.Description:
Material - The large-cap open-end blind rivets are made of 304 stainless steel with a smooth surface, strong, acid-resistant, and corrosion-resistant. There is no need to worry about rust or breakage; they are suitable for long-term use.
Design - Large cap round head blind rivets adopt a large cap design, providing a larger contact area, better load-bearing capacity on thin-walled materials, and enhancing stability.
Easy to Use - Install a large flange round head rivet, insert it into the pre-drilled hole, and use a tool to pull the rivet until the core breaks, forming a stable and secure connection.
Widely Applicable - Large flange round head rivets are widely used in automotive manufacturing (body panels), aerospace (aircraft structures), shipbuilding (hull connections), and construction (steel structures).

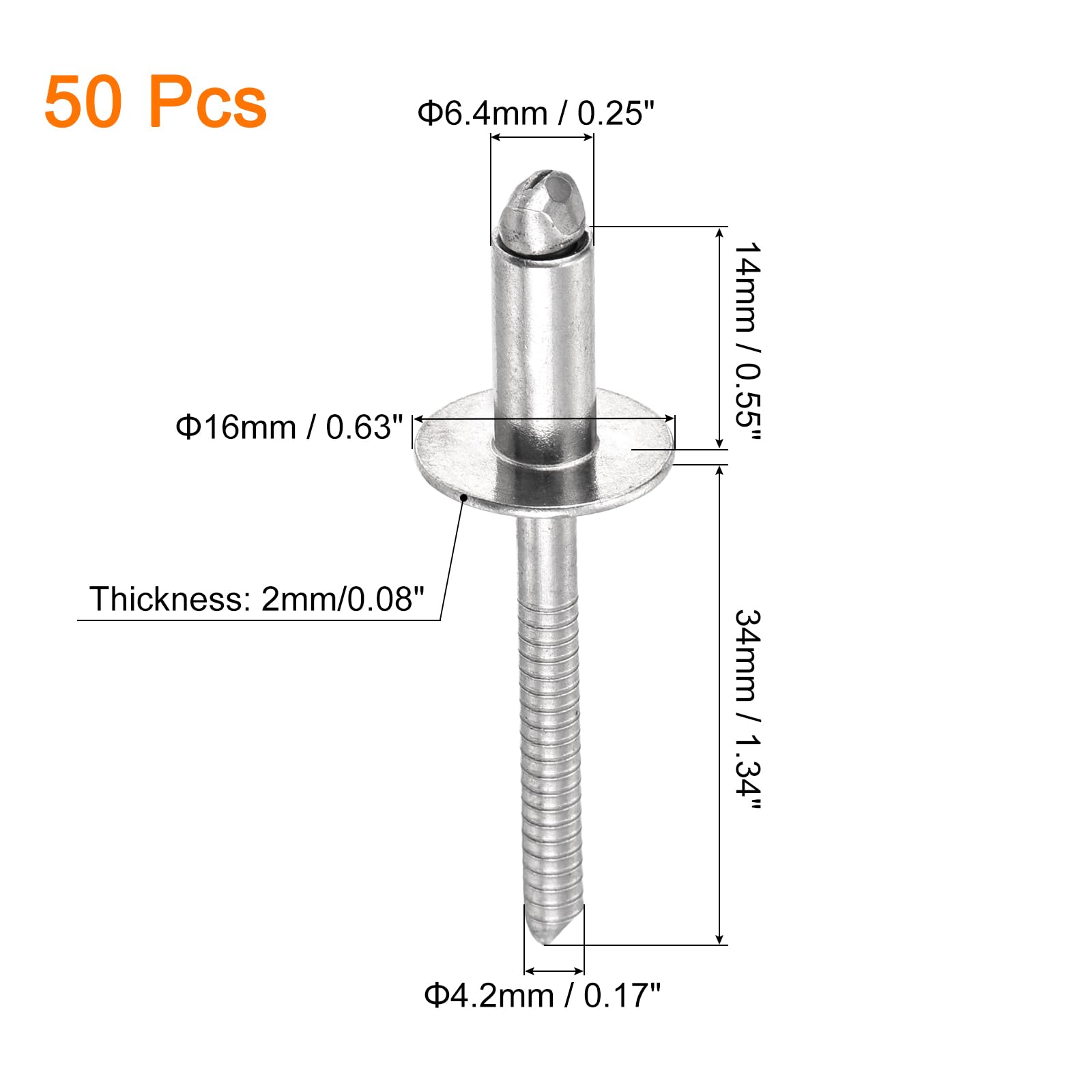

Specification:
Material: 304 stainless steel
Rivet Body diameter: 6.4mm/0.25"
Rivet Body length: 14mm/0.55"
Cap Diameter: 16mm/0.63"
Cap Thickness: 2mm/0.08"
Rivet Diameter: 4.2mm/0.17"
Rivet Length: 34mm/1.34"
Riveting Range: 0.23"-0.31"
Packaging: 50Pcs x Large cap round head blind rivets
| Main Specification | |
|---|---|
| Tillverkare | uxcell |
| Brand varumärke | uxcell |
| Föremålspaketkvantitet | 50 50 |
| Inkluderade komponenter | falska lögner |
| Materialmaterial | 304 rostfritt stål |
| Storlek | 1/4"x1/2" |
| Punktvikt | 1.04 pund |
| Product information | |
| Package Dimensions | 5.55 x 3.98 x 1.18 inches |
| Technical Details | |
| Delnummer | f24080800ux5636 |
| Others | |
| Datum först tillgänglig | 2024 or 28 september |
| Produkttyp | Blind Rivets |
