uxcell Spiral Flute Threading Tap 3/8-16 UNC, HSS (High Speed Steel) Uncoated Machine Thread Screw Tap 3 Flutes Tapping Tool H2 Tolerance
9 sold in last 24 hours

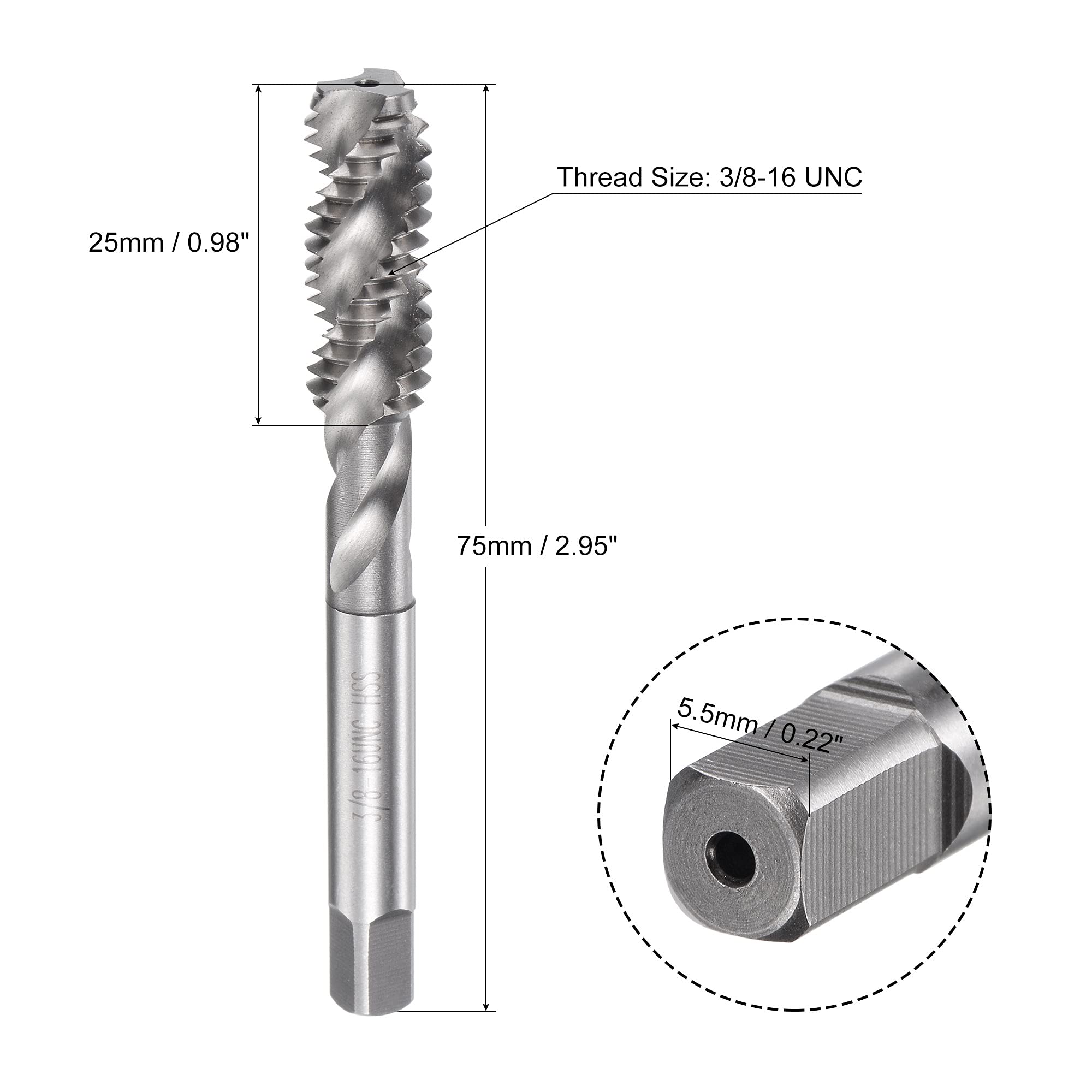

- Tap Size: 3/8-16 UNC thread, H2 thread tolerance grade. Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
- Material and Finish: High speed steel tool is with high hardness and toughness, heat resistance and wear resistance. Features the base substrate without any coatings. Suitable for general purpose thread tapping.
- Applications: Suitable for processing blind holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
- Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
Tags |
Estimated shipping
Select a product to estimate shipping.Information
Taps has straight flute thread taps, spiral flute thread taps, spiral point thread taps and thread forming taps. They are also classified into hand taps and machine taps according to the usage. Be sure to select the appropriate cutting oil for complex tapping process and apply anti-rust oil for maintenance after use.
Hand taps are operated by tap wrenches. Machine taps are suggested to be used with the tap collet with overload protection, and hand use or electric drills use is easy to cause breakage to the tap.

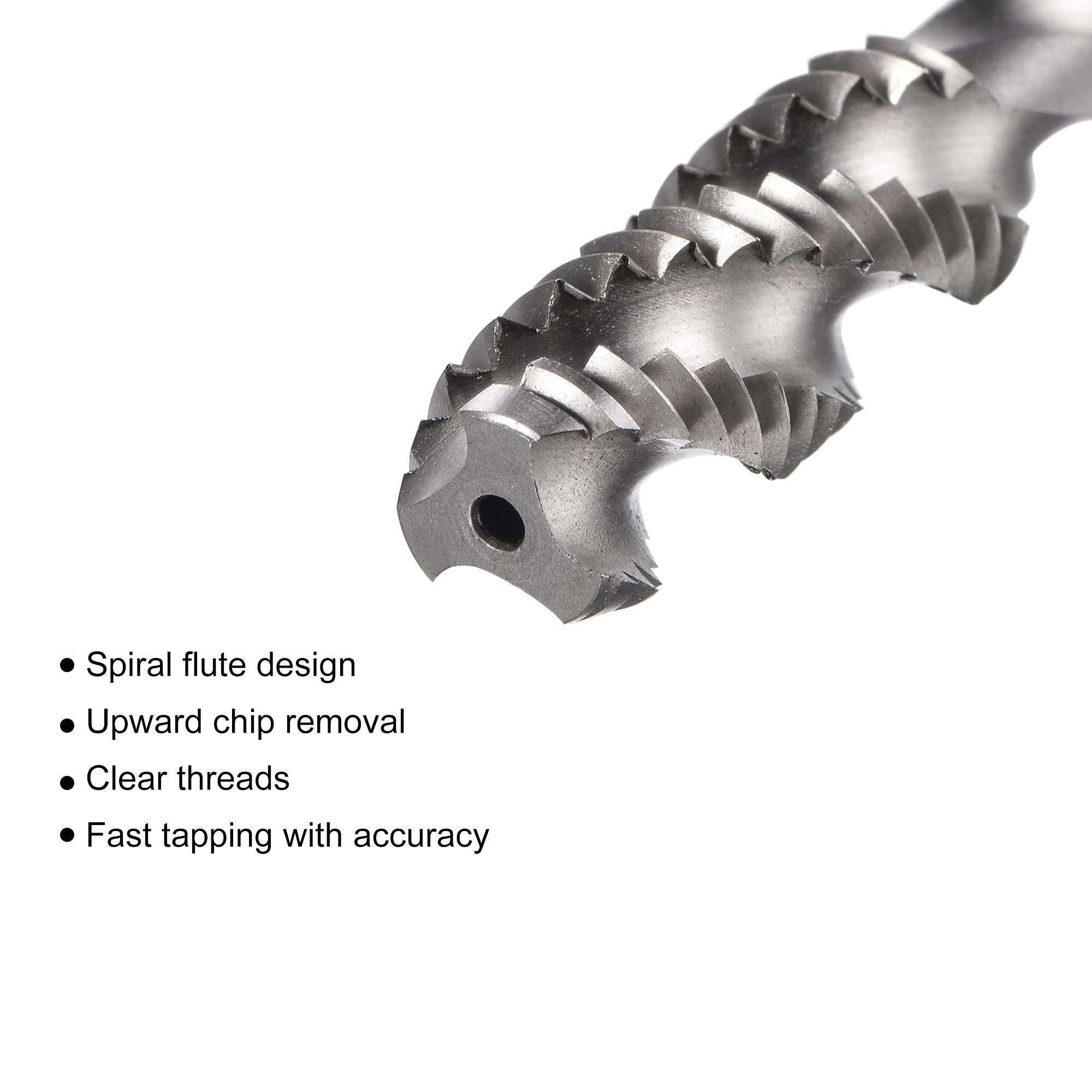

Spiral Flutes
Spiral flute design, upward chip removal. Right hand thread cutting, clear threads, fast tapping with accuracy.
High Speed Steel
High speed steel tool is with high hardness and toughness, heat resistance and wear resistance.
No Coating
Features the base substrate without any coatings. Suitable for general purpose thread tapping.
Used on drilling and tapping machines, CNC and milling machines.
Use with tapping oil to get higher quality threads and more durable taps.
Cutting oil is lubrication, cooling and anti-sticking.
Wide Applications
Suitable for processing blind holes and sticky materials. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc..
Recommended feed rate: general steel: 6-15m/min; harder steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. The torque caused by too fast feed speed is too large, which can easily cause the tap to break.
Tips
Machine taps are suggested to be used with tap collets with overload protection. Hand use or electric drills use is easy to cause breakage to the tap, so it is not recommended.
Taps are prone to chipping or breaking due to speed overload or non-vertical tapping. Use the correct tapping tools, such as tapping wrench, tapping machine. Micro taps (such as M1-M3.5) are mainly used in clocks and watches, tapping wood and soft metals with lower hardness.
Product details
| Main Specification | |
|---|---|
| Tillverkare | Uxcell |
| Brand varumärke | uxcell |
| Föremålspaketkvantitet | 1 1 |
| Antal bitar | 1 1 |
| Materialmaterial | HSS (High Speed Steel) |
| Storlek | 3/8-16 UNC |
| Punktvikt | 1.44 uns |
| Product information | |
| Package Dimensions | 5.43 x 3.98 x 0.63 inches |
| Punktmodellnummer | a21071300ux0333 |
| Technical Details | |
| Measurement System | Metric or Imperial |
| Delnummer | a21071300ux0333 |
| Finish | Uncoated |
| Usage | Machine |
| Others | |
| Datum först tillgänglig | 2021 or October 13 |
| Produkttyp | Spiral Flute Taps |
